High Power, High Torque, High Performance, Smooth Startup!

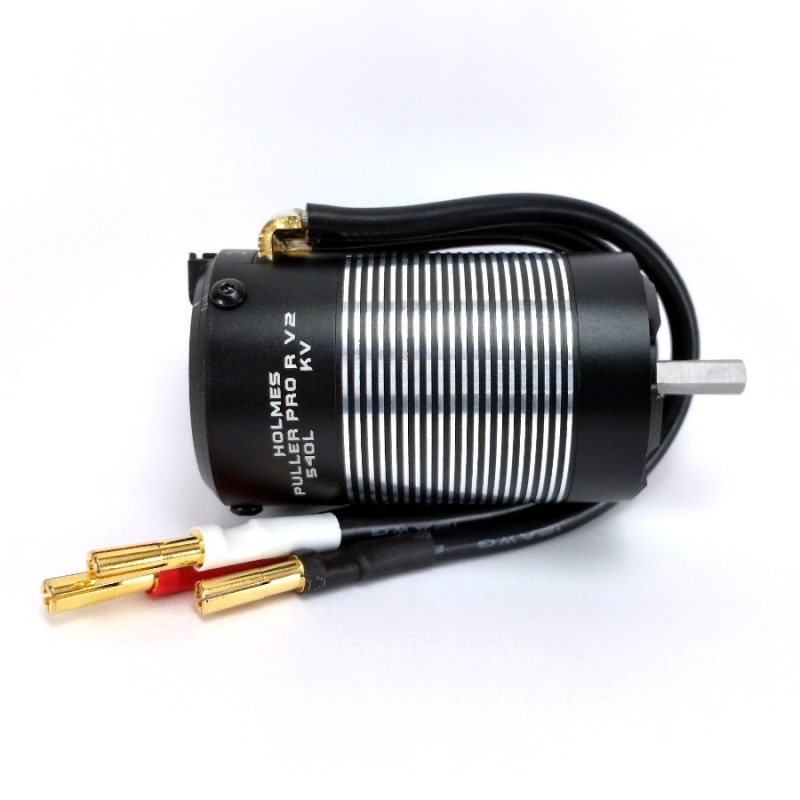

When you want efficient power, the Puller Pro delivers the excessive force you desire! The Pro R 540-L is a rock race honed variation with higher quality materials for less heat, more torque, and less brake fade. It retains the best low speed control and throttle feel in the industry, giving you an edge whether in the rocks or on the straights. An absolute beast on 4s!
To prevent motor damage, be sure that screws are not inserted more than 3.5mm into the mounting holes.
Features:
Four pole 17.5mm diameter x 32mm length rotor
Twelve slot stator, 180C resin impregnated copper windings
200C rated high strength neodymium magnets
Oversized bearings
Sensored
Waterproof sensor board
Sensor wire included
Specifications:
"550" size motor
25mm mount pattern
M3 mounting screws
5mm shaft diameter (requires 5mm pinion gear)
15mm shaft length
36mm diameter
60.6mm length
255.4g
60,000 rpm max
Notes: Designed for dominating 1/10th scale U4, rock racing, endurance, G6, trail adventure, and making general mayhem! Installs into Axial Yeti & Bomber, Losi Rock Rey, Lasernut U4, & LMT, Traxxas TRX-4, and similar vehicles accepting 550 size motors. Recommended battery 2s to 4s lipo, 3800mah 35c or greater. Recommended ESC 1/10th or 1/8th scale suitable for 4x4 vehicles. If you get your motor wet, you must clean, dry, and relube bearings to avoid damage.
1 year warranty through the manufacturer from date of purchase. Does not include damage from overheating, rusting, or improper installation.
