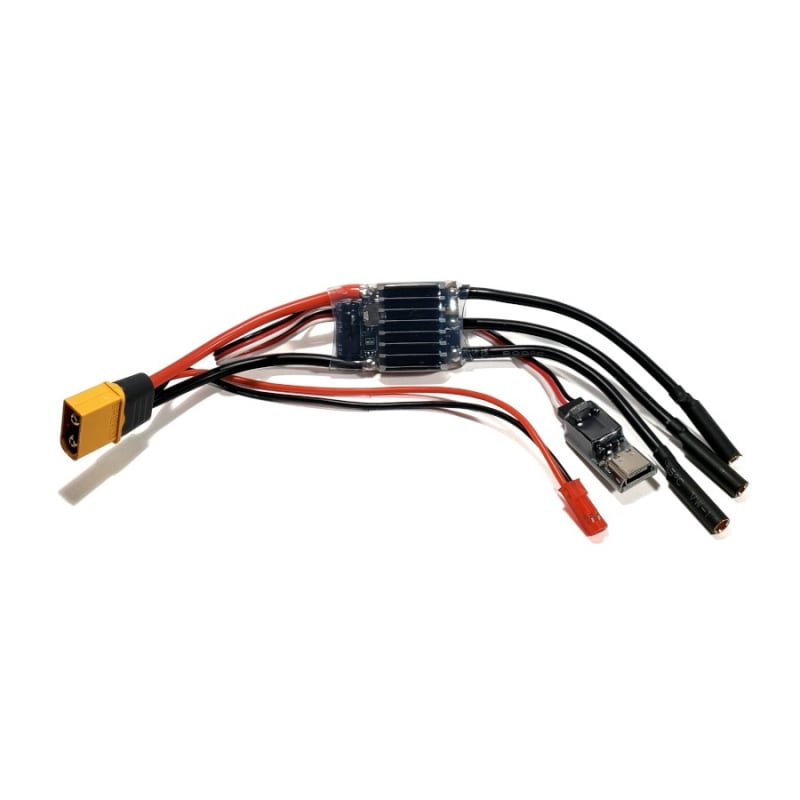

The CrawlMaster Mini ESC is designed for the needs of RC Rock Crawlers! It harnesses the power of 32 bit technology to offer the smooth, quiet, and torque dense driving you desire in an extra small package! The ESC is soldered and ready to plug and go! It is conformal coated for water resistance, but we recommend extra coating with CowRC's Cow-Formal if you plan to submarine the ESC.
Recommended Use:
1/10th and smaller Single speed Trail, Scale, and Rock Crawlers such as TRX4 Sport, SCX10, Element Enduro, etc..
Recommended 8lb limit, subject to gearing, driving style, terrain, etc.
Recommended 1800kv limit for 4s use
NOT recommended for two speed vehicles, rock racers, tow rigs, and other high load installations.
Features:
32 bit processing power unlocks advanced algorithms and future upgrades
Exclusive Sinewave Startup (like FOC) but open system and compatible with all motors
Silent operation with most motors, inaudible switching frequency
Intelligent RPM lock at low speed for unmatched control when it matters most
Regular throttle above low speed operation for torque control and less broken parts at speed
No on/off switch to fail. Plug it in and go!
Overcurrent, temperature, stalled rotor, and throttle loss protection
Automatic cell detection and low voltage protection for LiPo battery
Ultra smooth throttle and strongest drag brake out of the box
Specifications:
2 to 4s lipo (20v max)
"40amp" package
size 39x26x11mm board only
39 grams fully built
1800kv outrunner recommended limit on 4 cell lipo
2250kv outrunner recommended limit on 3 cell lipo
2700kv inrunner recommended limit on 3 cell lipo
3 amp 7.4v internal BEC
XT60 battery plug
JST aux power plug
4mm motor plugs
Conformal coating for water resistance
USB programmer included
Programmer and USB driver files download: Holmes Programmer:
https://drive.google.com/file/d/1IgHfEhft7xSH5OVTN...
|
|
|
