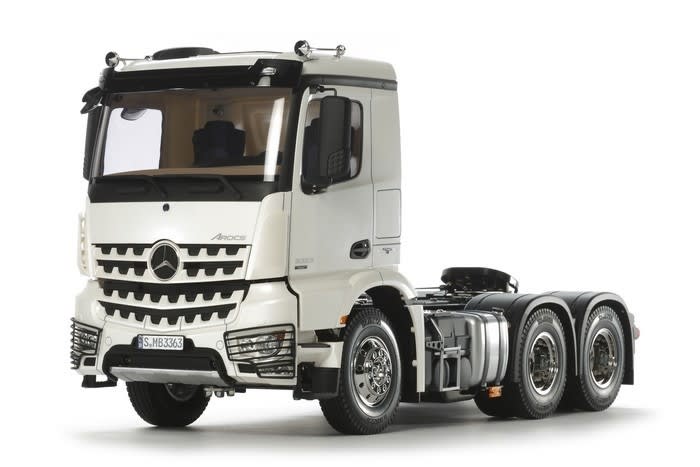

Tamiya RC 1/14 Arocs 3363 6x4 Classic Space

Tamiya RC 1/14 Arocs 3363 6x4 Classic Space

Tamiya
$

  • Note:: Coupon discounts not allowed
    by manufacturer
Part Number: TAM56352
UPC Code: 4950344563524
This product qualifies for FREE SHIPPING!
STOCK STATUS:
Out of Stock
Email Me when Back In Stock
Special Order Item
Call: 707-462-4152
or
Email: [email protected]
To Order

This 1/14 scale tractor truck recreates the Mercedes-Benz Arocs 3363 3-axle truck, which is the first narrow bodied European tractor model in the Tamiya Tractor Truck Series. The full-size subject is the German company's heavy duty tractor head that debuted in 2013. Powered by a 630hp 15.6-liter inline-6, the actual Arocs is capable of hauling massive loads of up to 250 tons.

The Tamiya rendition faithfully captures the truck's modern form with the use of ABS plastic body parts and a number of metal chassis components. One look at the detailed interior and auxiliary equipment, such as air tanks, will confirm that the body features replica-quality realism, which is further enhanced with metal transfers depicting emblems and numerous metal-plated parts. The chassis is built for durability as it uses aluminum side channels with resin cross members. Drivability is accomplished by power from the front-mounted motor and is transmitted via a propeller shaft to the rear axle; built-in differential gears guarantee smooth cornering. Gear changes can be made via a separately-sold Tamiya 4-channel transmitter.
Length: 529mm, width: 190mm, height: 267mm.
The narrow body of the ClassicSpace variant Arocs 3363 is recreated accurately using newly-molded parts, complete with the distinctive "bucket-tooth" grille. Photo-etched parts recreate cab rear platform.
Interior details include: seat and dashboard.
3-axle chassis utilizes a tough ladder frame with aluminum side channels and resin cross members.
A realistic drivetrain setup sees the front mounted motor powering twin rear axles.
3-speed transmission can be controlled via a 4ch R/C transmitter.
Highly realistic suspension employs metal leaf spring dampers and friction dampers.
Coupler is included to enable connection with any currently available Tamiya 1/14 scale trailers.
Compatible with the tractor truck option parts (TROP) Items 56531, 56532, 56536 and 56538. Use with Multi- Function Control Unit MFC-03 (Item 56523) (or MFC-01, Item 56511) for realistic LED lights and sounds.
Scale: 1/14
Construction type: Assembly kit
Terrain use: On-Road
Drive-train: 2WD
Drive type: Gearbox
Drive line: Dog bone
Differential type: Gear
Suspension: Leaf spring
Steering mechanism: Bell-crank
Shock damper: Friction damper
Shock damper material: Aluminum
Tire type: Rubber
Tire tread: Radial
Body material: ABS Plastic
Chassis material: Aluminum & plastic
Electronic Speed Control (ESC): Not included
ESC model: N/A
LED Light buckets: Yes
LED lights: No
Motor: 540-brushed type
Bearings: Metal and plastic bushings
Adjustable camber: Fixed
Adjustable toe angles: Front only
Adjustable ground clearance: Fixed
Adjustable gear ratio: 3-speed transmission
Adjustable wheelbase: Fixed
Adjustable track width: Fixed
Adjustable shock angle: Fixed
4-channel radio gear
7.2 battery & charger
TS plastic model paint
Electronic speed control
