Includes:

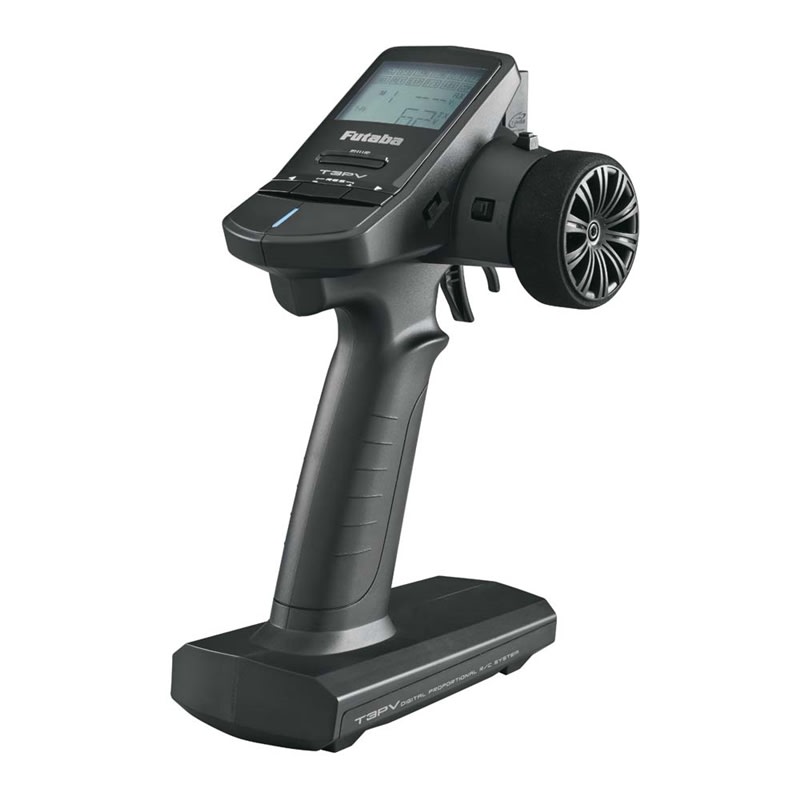

(1) Futaba 3PV 3-CH Transmitter
(1) 4-CH R304SB T-FHSS Telemetry Receiver
Features:
FHSS/S-FHSS/T-FHSS protocols
Large, easy to read programming screen
Four wheel steering and brake mixing
Model data copy
Anti-lock brake system (ABS) function
R304SB telemetry receiver
Link Mode
DT3 selection
SW1
Throttle fail safe
Steering and throttle trim
Channel 4 trim
Sub trim
Steering dual rate adjustment
Steering and throttle end point adjustment
Channel 3 and 4 end point adjustment, and servo reversing
Steering and throttle exponential
Auto power off after ten minutes
Specifications:
Power Requirement: 4.8 - 7.4V battery (dry cells cannot be used)
Receiving Frequency: 2.4GHz
System: T-FHSS (auto detection) with SBUS2 port
Dimensions: 1.38 x 0.91 x 0.33" (35.1 x 23.2 x 8.5mm)
Weight: 0.23oz (6.6g)
Antenna Length: 7.5" (190.5mm)
Transmitter:
T-FHSS/S-FHSS SYSTEM, WHEEL TYPE, 3+1* CHANNELS
*The 4th channel is used for mixing functions only.
COMMUNICATION METHOD: Two-way (T-FHSS)/One-way(S-FHSS, FHSS) operation system.
MAXIMUM OPERATING RANGE: 80m (Optimum condition)
FOR SAFETY: F/S, ID
TRANSMITTER FREQUENCY: 2.4 GHz band
POWER REQUIREMENT: Size AA Dry Cell battery x 4 (6 V)
CURRENT DRAIN: 100 mA or less
TRANSMISSION ANTENNA: 1/2λ di-pole (Built-in)
