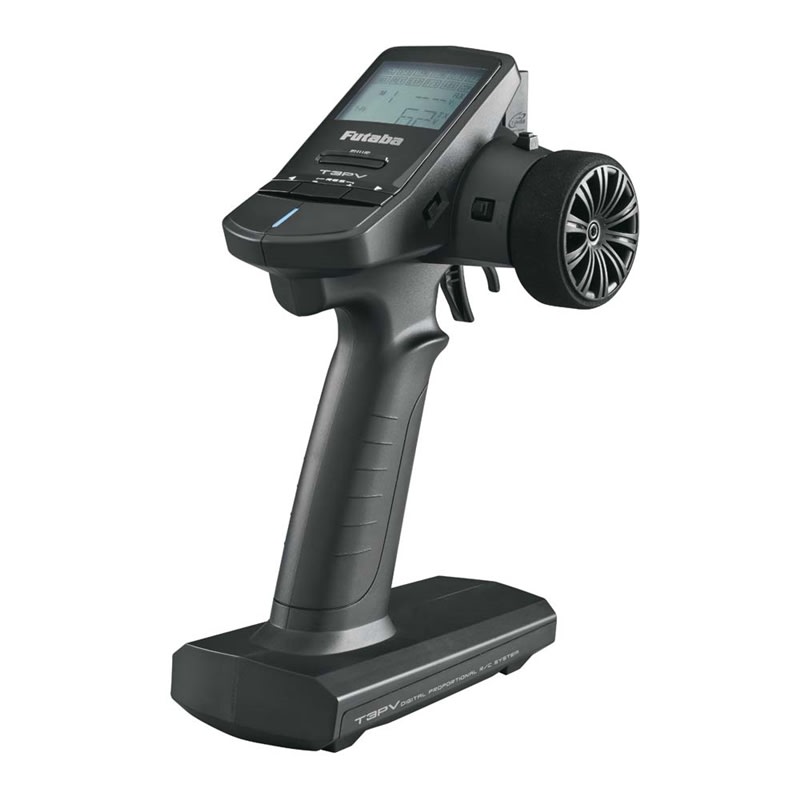

Includes:Futaba 3PV 3-Channel Transmitter, 3-Channel R203GF Receiver.
Features:FHSS/S-FHSS protocols
Large, easy to read programming screen
Four wheel steering and brake mixing
Model data copy
Anti-lock brake system (ABS) function
R203GF 3-channel receiver is ideal for brushless ESCs and digital servos
DT3 selection
SW1
Throttle fail safe
Steering and throttle trim
Channel 4 trim
Sub trim
Steering dual rate adjustment
Steering and throttle end point adjustment
Channel 3 and 4 end point adjustment, and servo reversing
Steering and throttle exponential
Auto power off after ten minutes
Specifications:Transmitter:
T-FHSS/S-FHSS SYSTEM, WHEEL TYPE, 3+1* CHANNELS
*The 4th channel is used for mixing functions only.
COMMUNICATION METHOD: Two-way (T-FHSS)/One-way(S-FHSS, FHSS) operation system.
MAXIMUM OPERATING RANGE: 80m (Optimum condition)
FOR SAFETY: F/S, ID
TRANSMITTER FREQUENCY: 2.4 GHz band
POWER REQUIREMENT: Size AA Dry Cell battery x 4 (6 V)
CURRENT DRAIN: 100 mA or less
TRANSMISSION ANTENNA: 1/2λ di-pole (Built-in)
R203GF Receiver:
Dimensions: 1.37 x 0.9 x 0.33" (33 x 23 x 8.5mm)
Weight: 0.21oz (6g)
Operating Voltage: 4.8 - 7.4V (shared with servo)
Battery Fail Safe Voltage: 3.8V*
Current Drain: 30mA at no signal
Antenna Length: 7.5" (190.5mm)
*Battery fail safe voltage is set for 4-cell NiCd/NiMH battery.
Battery F/S does not work properly when other type of battery is used
