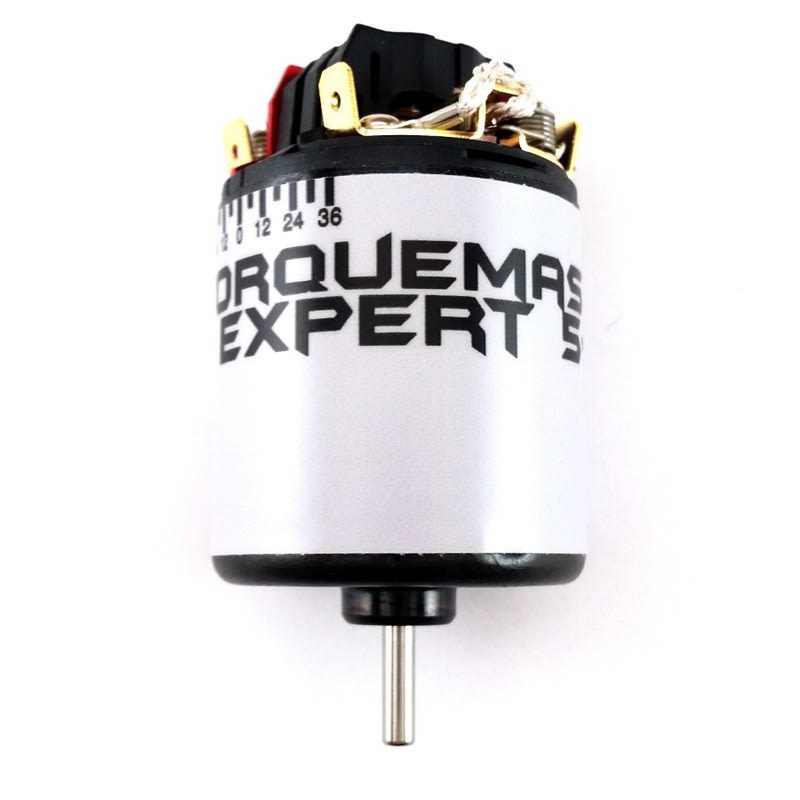

Holmes Hobbies TorqueMaster Expert 540 55T Motor

When you need a quality motor, look no further than the TorqueMaster Expert 540 from Holmes! The Expert series features the same quality construction as our Pro motors, but with a machine wound armature for an affordable alternative that won't break the bank.

Motor speeds taken from averaged lots at 7 volts, zero timing with no load:

35t = 1450 rpm/volt

45t = 1210 rpm/volt

55t = 987 rpm/volt

Every brushed motor carries a 30 day warranty directly through Holmes Hobbies to cover manufacturing defects. Damage caused by improper gearing is not covered under warranty.

Machine-Wound Armature

Standup Brush and 10mm commutator

Gold-plated copper brush hood to resist corrosion and provide lowest resistance

5mm web 3 slot armature- Maximizes torque and efficiency

Can – 1.4mm thick can features minimal venting and two high-power FB9 wet magnets to maximize torque and efficiency

Dual Ball bearings

Adjustable timing

Holmes XX springs for consistent drag brake

Holmes Soft Copper brushes for high torque and long motor life

Broken in for immediate installation and use
