IMPORTANT! For use in the Axial Wraith on 3s lipo (11.1v) you must use a 16t pinion to avoid overheating the motor!

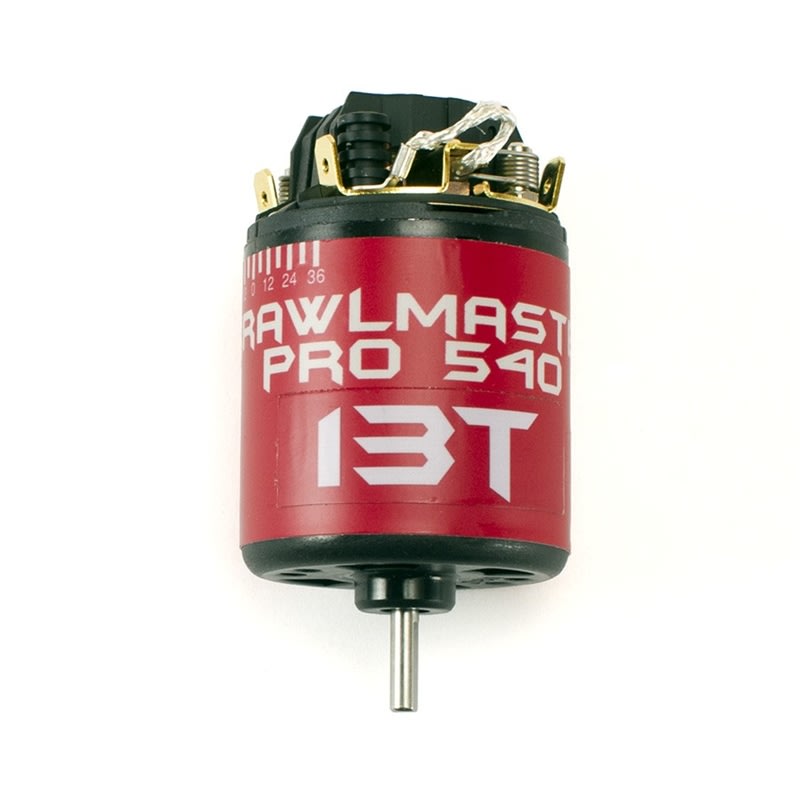

When you need the smoothest power delivery available, the Crawlmaster Pro is the best choice. Holmes guarantees the finest parts and construction techniques available. Our building team has a combined 45 years of experience. We have provided motors for 1st place competitors, robotics, and off road vehicles around the world!
Our professionally crafted motors begin with Japanese quality parts and USA hand winding and assembling. Armatures feature pattern winds with specific wire sizes to suit your needs. Wind termination is reinforced using high-temp silver alloys with state of the art resin impregnated coils. All armatures are precision balanced and the commutator is diamond trued. One cannot build a finer or more precise motor!
- Hand-Wound Armature – Our pro-level armatures feature a 1-3 pattern
hand-wound wind with specific wire sizes developed to take all that
your high power electronics can dish out. We optimize copper fill for
best power and torque. Wind termination is reinforced using high-temp
silver alloys, with state of the art epoxy resin impregnated coils. All
armatures are then dynamically balanced with epoxy and the commutator is
diamond trued. All armatures are stamped with wind. One cannot build a
finer or more precise armature!
- Standup brushes and 7.5mm commutator maximize power and motor longevity
- Gold plated copper brush hood to resist corrosion and provide lowest resistance
- 5 slot armature- offers the finest low speed control and efficiency
- Epoxy balancing for highest torque and efficiency
- 1.4mm thick can features minimal venting and two high-power FB12 magnets to maximize torque and efficiency
- Dual ball bearings
- Adjustable timing
- 0.55mm extra Heavy springs for consistent drag brake
- 6.15 ounce finished weight with medium wire fill
All Kv (rpm per volt) measurements taken at zero timing, no load, and 7 volts:
11t = 2675Kv
13t = 2250Kv
16t = 1850Kv
20t = 1500Kv
Every brushed motor carries a 30 day warranty directly through Holmes Hobbies to cover manufacturing defects. Damage caused by improper gearing is not covered under warranty.
