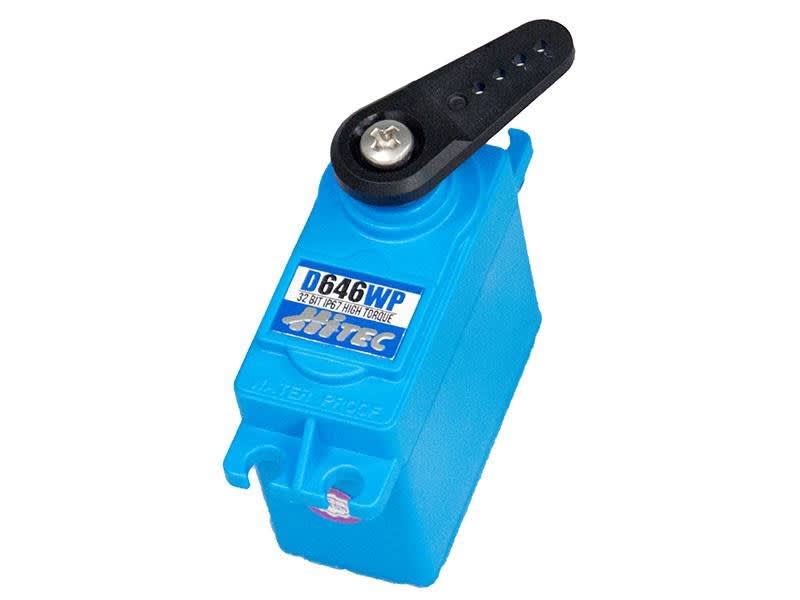

Hitec RCD D646WP Waterproof Digital Servo
Hitec RCD D646WP Waterproof Digital Servo



RPP Price: $54.99

Note: Some coupon discounts not available

STOCK STATUS:
 In Stock!

Part Number: HRC36646
Qty:

Description

IP-67 rated with D-Series enhanced technology, the D646WP is the perfect answer to its digital predecessor the HS-5646WP.

*This is the upgraded version of the HS-5646WP

Specifications:
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 7.4V
Speed (Second @ 60°) 0.28 ~ 0.17
Maximum Torque Range oz. / in. 115 ~ 180
Maximum Torque Range kg. / cm. 8.3 ~ 12.9
Current Draw at Idle 30mA
No Load Operating Current Draw 500mA
Stall Current Draw 2,650mA

Physical Specifications
Dimensions (Inches) 1.65 x 0.83 x 1.57
Dimensions (Metric) 40.6 X 19.8 X 37.8
Weight (Ounces) 2.10
Weight (Gram) 57.0
Circuit Type 32 bit Programable Digital
Motor Type 3 Pole Cored Carbon Brush
Gear Material MP 1st Gear & 3 Metal Gears
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) 25 / 6
Case Material Plastic
