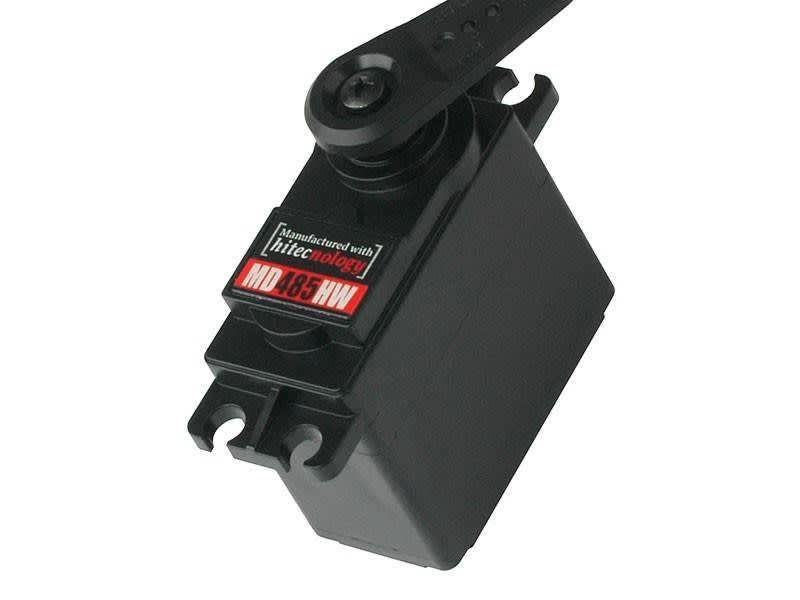

Initially designed for the industrial servo market, Hitec’s MD485HW features a magnetic encoder position sensor for increased accuracy and durability. This performance enhancement provides higher centering precision, straighter tracking and faster times on the strip, making it the ideal answer for the radio control drag racing enthusiast. Hitec’s 32bit D-series circuit, 4096-step resolution and zero backlash Karbonite gears make the MD485HW the durable, dependable servo that Team Hitec drivers recommend. Plus, it is priced right, costing much less than most servos in its class. Trust Hitec to deliver the high performance you need!
Features:High Resolution 32-bit (4096 steps) Programmable Digital Circuit
PWM or TTL Protocol Capability
Magnetic Encoder Position Sensor
Wide Operating Voltage (4.8 ~ 8.4V)
Heavy-Duty, Long Life Motors
IP65 Rated Cases
Customization and Modification Options Available
Custom Connector Options Available
Programmable Functions:End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset
Performance Specifications:| Operating Voltage Range (Volts DC) | 4.8V ~ 8.4V |
| Speed (Second @ 60°) | 0.20 ~ 0.15 |
| Maximum Torque Range oz. / in. | 67 ~ 103 |
| Maximum Torque Range kg. / cm. | 4.8 ~ 7.4 |
| Current Draw at Idle | 30 mA |
| No Load Operating Current Draw | 320 mA |
| Stall Current Draw | 1,500 mA |
| Dead Band Width | 2us |
Physical Specifications:| Dimensions (Inches) | 1.57 x 0.78 x 1.50 |
| Dimensions (Metric) | 39.8 x 19.8 x 38.0 |
| Weight (Ounces) | 1.59 |
| Weight (Gram) | 45.0 |
| Circuit Type | 32 bit (4096 step) |
| Motor Type | Cored Carbon Brush |
| Gear Material | Plastic Resin Gears |
| Bearing Type | Top Ball Bearing |
| Output Shaft (type / Ømm) | 25 / 6 |
| Case Material | Plastic
|
Dust / Water Resistance
| IP-65 Rated |
| Connector Gauge (AWG) / Strand Count | N / A |
Note:
This servo has a 25-tooth output spline
