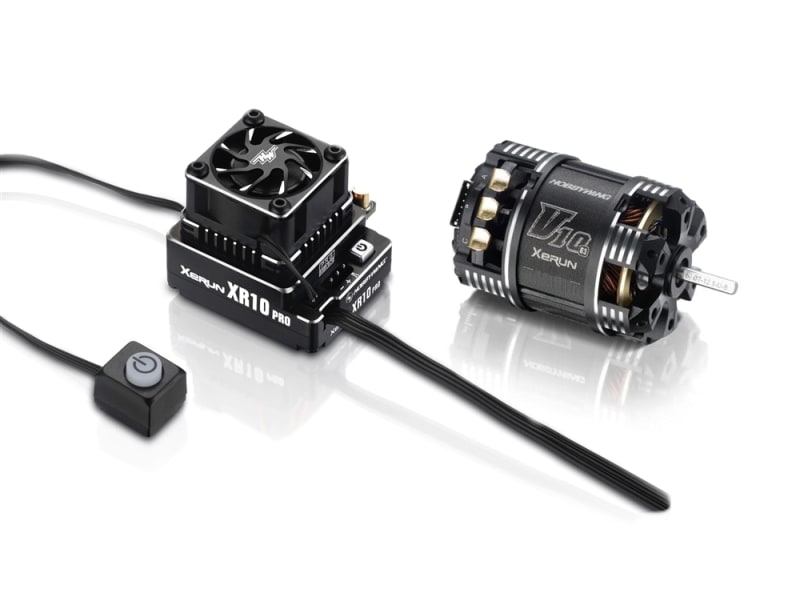

Hobbywing XeRun XR10 PRO G2 ESC w/ V10 G3 6.5T Sensored Brushless Motor - Combo

Hobbywing XeRun XR10 PRO G2 ESC w/ V10 G3 6.5T Sensored Brushless Motor - Combo

RPP Price: $299.99

 In Stock!

Part Number: HWI38020282

XeRun XR10 Pro G2 ESC w/ V10 G3 6.5T Sensored Brushless Motor - Combo

For Modified Class of 1/10th & 1/12th On-road Racing

ESC Details:
32-bit M4 microprocessor with more powerful processing capability
Peak current up to 1200A.
Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.
Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving; braking forces (of the motors).
Expanded range of the max. brake force brings in the active brake ranges from 101% to 150%.
Softening function (HOBBYWING-initiated) for milder or wilder driving control and better driving efficiency.
10 select-to-use profiles applicable to all 1/10th RC car racing.
Internal electronic key switch for long service life, high reliability; and the external switch port for connecting an external switch (included in the product box) is applicable to different situations.
Switchable motor direction (CCW/CW) for various chassis.
Multiple protections comes in standard
low-voltage cutoff protection
ESC and motor thermal protection
Fail safe (throttle signal loss protection)
Reverse polarity protection*
Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real time.

Motor Details:
Lightweight. The G3 Modified & Stock motors only weigh 161g & 132g respectively, the weights are reduced by 11% & 21% when compared with the previous generation G2 motors.
The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee an outstanding linear feel to the motor.
The mechanical timing can be adjusted finely and smoothly; the skid-proof lines on the rear end plate of the motor guarantee the stability of the timing after adjustment. For G3 Stock motors (10.5T~25.5T), the timing is adjustable from 30 degrees to 60 degrees; for Modified motors (3.5T~8.5T), the timing is adjustable from 20 degrees to 50 degrees.
The motor case is designed to be easy to dismantle for maintenance purposes and for the replacement of common wearing parts.
The special shell design which makes the stator core expose to the air maximizes cooling. Big holes on the end plates of 10.5T~21.5T motors further help reduce heat; small holes on the end plates of 5.5T~8.5T motors effectively keep sand or dirt from getting inside and damaging the motor(s).
The use of high-performance stator core, heat-resistant wire, heat-resistant rotor with strong structure, imported high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding performance and super durability.
Compliant with IFMAR, ROAR, EFRA, BRCA rules, and certified by RoHS, CE, FCC
