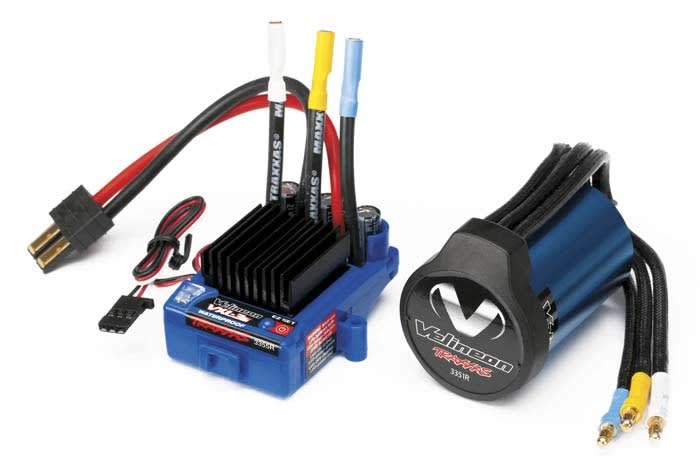

Traxxas Velineon VXL-3S Brushless Power System 3500kV

Velineon® VXL-3s Brushless Power System, waterproof (includes VXL-3s waterproof ESC , Velineon® 3500 motor, and speed control mounting plate (part #3725))
The key to the Velineon's brushless power system's extreme power output is total system optimization. The Velineon VXL-3s electronic speed control and 3500kV brushless motor are carefully engineered to work seamlessly together for maximum power flow. High-frequency transistors and advanced circuit design delivers incredibly smooth and refined throttle control with Traxxas EZ-Set® one-button convenience.

Replacement part for these models:
4-Tec® 2.0 VXL AWD Chassis
Bandit® VXL
Drag Slash
Rustler® 4X4 VXL
Rustler® VXL
Slash 4X4 Ultimate
Slash 4X4 VXL
Slash VXL
Stampede® 4X4 VXL
Stampede® VXL

Accessory part for these models:
4-Tec® 2.0 AWD Chassis
Bandit®
BIGFOOT® No. 1 Officially Licensed Replica
Chevrolet® Corvette® Stingray
Factory Five '33 Hot Rod Coupe
Factory Five '35 Hot Rod Truck
Ford® F-150 Raptor
Ford® Fiesta® ST Rally
Ford® GT
Ford® Mustang GT
Rustler® 4X4
Rustler®
Slash 2WD Unassembled Kit
Slash 4X4
Slash
Stampede® 4X4 Unassembled Kit
Stampede® 4X4
Stampede®
Toyota® GR Supra GT4®

Velineon VXL-3s ESC;
Auto-detects and compatible with brushed, brushless and sensored
brushless motors
Compatible with NiCd, NiMH (4-10 cells) and 2-3 cell LiPo battery
packs-two stage low voltage detection for LiPos
Three driver profiles-Sport, Race and Training Modes
Gold-plated motor connectors
Built-in output for optional auxiliary cooling fan
Velineon 3500 Brushless Motor;
10-turn 3500kV
Optimized for extreme power and efficiency in 1/10 scale vehicles
Ultra high temp neodymium magnets, high-speed ball bearings
Precision balanced rotor
Traxxas High-Current Connector
Reverse polarity protection makes backward connections impossible
Compatible with high-current 12-gauge wire
Gold-plated wide surface terminals
Textured surface for easy gripping

VXL-3s
Input voltage: 4.8-11.1V (4-10 cells NiMH or 2S-3S LiPo)
Supported motors: Brushed/Brushless/Sensorless brushless
Motor Limit: None
Continuous current: 200A
Peak current: 320A
BEC voltage 6.0V DC
Transistor type: MOSFET
On-resisteance: 0.00075 ohms Max (0.006/8 FETs)
PWM frequency: 12,000Hz
Battery connectors: Traxxas High-Current Connector
Motor connectors: TRX 3.5mm bullet connectors
Motor/battery wiring: 12-gauge Maxx Cable
Thermal protection: 2-ge thermal shutdown
Case size (l/w/h): 2.19" x 1.54" x 1.3" (55 x 39 x 33mm)
Weight: 3.17oz (90g)

Velineon 3500 Motor
Type: Sensorless brushless
RPM/volt: 3500 (10-turn)
Magnet type: Ultra High-Temperature, sintered neodymium
Connection type: TRX 3.5mm bullet connectors
Wire Size: 12-gauge Maxx Cable w/solder tabs
Current Ratings: 65A constant; 100A peak/burst
Max RPM: 50,000
Diameter: 1.42" (36mm) (540 size)
Length: 2.165"(55mm)
Weight: 9.24oz (262g)
