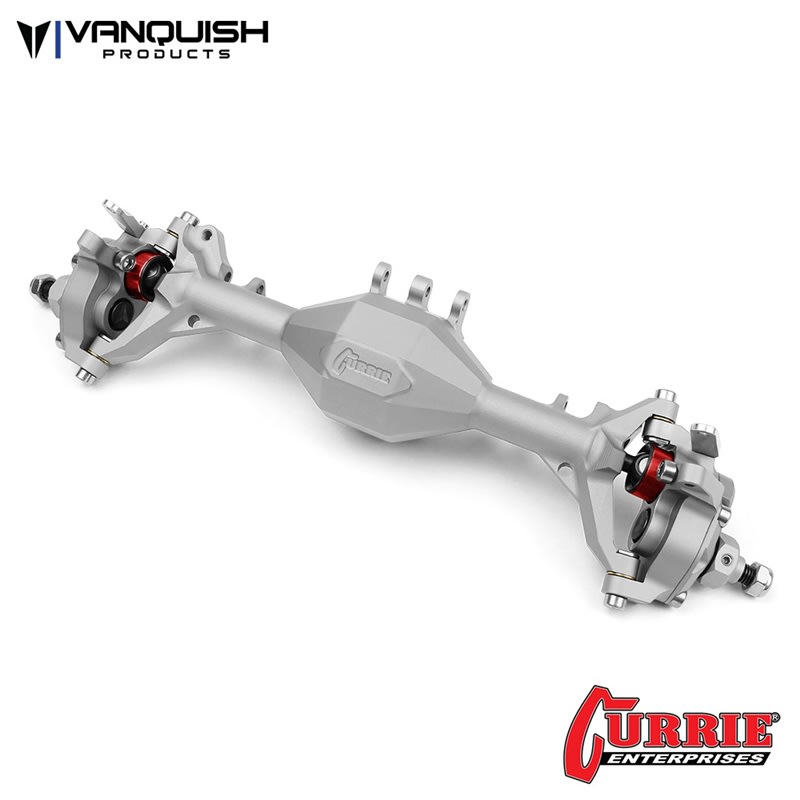

Vanquish Products Currie Portal F9 SCX10 II Front Axle Clear Anodized

Vanquish Products Currie Portal F9 SCX10 II Front Axle Clear Anodized



RPP Price: $329.99

STOCK STATUS:
 In Stock!


Part Number: VPS08351
Qty:

Description

Currie F9 Portal Front Axle for SCX10 II based vehicles

The F9 Portal axles create extreme amounts of ground clearance under the center of your axle, increasing the clearance by 1/2"+ (13mm). This provides the equivalent of a tire over 1 inch taller than what is on your vehicle. The advantage of the Vanquish Currie F9 Portals is the gear reduction inside the portal (1.67:1) which can be adjusted with optional gear sets (1.4:1 Overdrive). By adding reduction at the portal, less torque is transferred through the other upstream components in the drivetrain. These axles are a direct replacement to any Axial AR44 axle, using all stock links.

These axles come with all parts needed to assemble a full front axle.

Features:
  • Portal box built into the included knuckle with bolt on high steer arm for double shear mounting
  • Gear reduction in the portal of 1.67:1 (18/30), Optional Overdrive Ratio of 1.4:1 (20/28) recommended for use in front axle only.
  • Included Vanquish AR44 machined gear set
  • Overall axle reduction of 6.26:1 with stock portal ratio
  • 13mm increase in ground clearance
  • Specifically design offset C-hubs is machined into the housing for strength, durability, clearance and scale appearance
  • Hex to hex width of 7.66 inches, only roughly 5mm wider than a stock AR44 axle with a narrow hex
  • Replaceable Chromoly threaded inserts used at knuckle and C-hub to ensure a stripped thread doesn't ruin your investment
  • Brass knuckle bushing from the AR60 axles are used in place of SCX10-II sized for more durability.
  • Chromoly AR60 size VVD axle shafts come preassembled
  • Chromoly stub shafts with 6mm design at the drive pin which tapers down to a 5mm thread for ultimate strength
  • Chromoly spool
  • Aluminum 12mm hex with set screw
  • Compatible with stock SCX10-II Chassis mounted servo or F9 Servo on axle mount
  • Uses all SCX10-II linkage
  • Adjustable steering stop integrated into knuckle
  • Complete Fast Eddy Bearings kit
  • Licensed by Currie Enterprises
  • Comes with One Piece Bearing Retainers (Patent Pending)
  • Double shear shock mounts
  • Integrated Panhard mount
  • Upper link mounts built into third member
  • Increased upper link clearance for more suspension up travel ability

Note:
Requires the use of a 350 SLW hub or greater on Vanquish 1.9 wheels, Incision wheels will require a #4 or greater. Other wheel manufacturers offsets will vary. Axles must be used in pairs, you cannot run a front portal axle without a rear and vice versa.
Average Customer Review: Average Customer Review: 4.5 of 5 4.5 of 5 Total Reviews: 3 Write a review.

Recommended Accessories
Vanquish Products SCX10 II Currie F9 Servo Mount Kit Grey Anodized
RPP Price: $38.99

Add
Vanquish Products SCX10 II Currie F9 Servo Mount Kit Grey Anodized
Vanquish Products SCX10 II Currie F9 Servo Mount Kit Clear Anodized
RPP Price: $38.99

Add
Vanquish Products SCX10 II Currie F9 Servo Mount Kit Clear Anodized
Vanquish Products Currie Portal F9 SCX10 II Rear Axle Clear Anodized
RPP Price: $249.99

Add
Vanquish Products Currie Portal F9 SCX10 II Rear Axle Clear Anodized
Vanquish Products SCX10 II Currie F9 Servo Mount Kit Black Anodized
RPP Price: $38.99

Add
Vanquish Products SCX10 II Currie F9 Servo Mount Kit Black Anodized


  0 of 0 people found the following review helpful:

5 of 5 August 17, 2022
Reviewer: Christopher Shedd from Midland , TX United States


Was this review helpful to you?

  0 of 1 people found the following review helpful:

4 of 5 Fast shipping, best prices September 24, 2018
Reviewer: Andrew Paulin from Tucson, AZ United States
4 stars because it is what it is, a currie portal, that being said gear to locker bolts were too long, tolerances were alittle tight had to force a few screws in, most of all for a $300 axle I was surprised they couldn’t add alittle grease so we could put this fancy $300 axle together without having to go to the store to buy more stuff

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 A+++++ September 17, 2018
Reviewer: Holvin Rivera from Orocovis , Puerto Rico Puerto Rico
Excellent

Was this review helpful to you?
