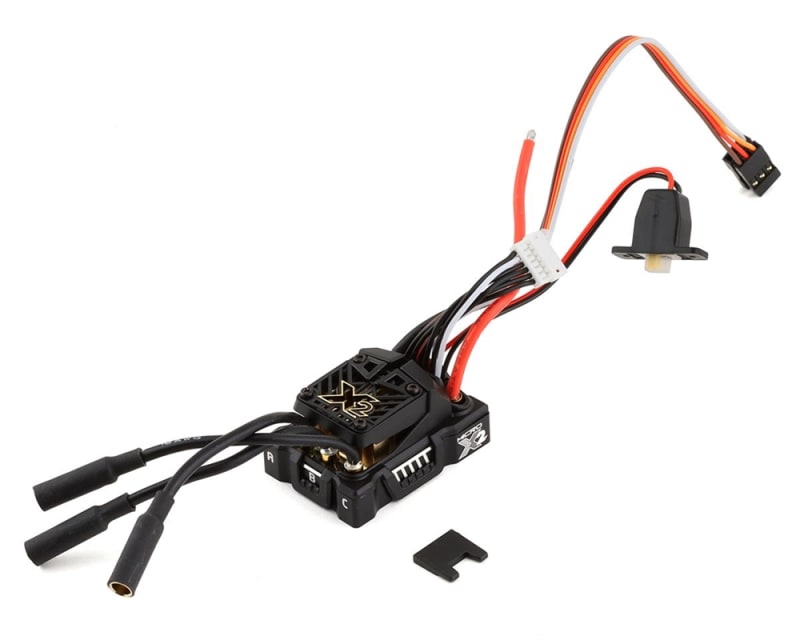

Castle Creations Mamba Micro X2, 16.8V, WP Sensored Crawler ESC with 4.0mm Connectors

Castle Creations Mamba Micro X2, 16.8V, WP Sensored Crawler ESC with 4.0mm Connectors



More Photos:


RPP Price: $89.95

Note: Coupon discounts not allowed
by manufacturer


STOCK STATUS:
 In Stock!


Part Number: CSE010-0171-00
Qty:

Description

This ESC may have an internal or external BEC. If this is a concern for you, please contact us before ordering to check availability.

Important Product Update, 6/14/2023.
The internal BEC is back! All Micro X2s made on or after June 2023 will again have the internal BEC. You can check the date of manufacture on the side of the ESC box or on the ESCs receiver wire. ESCs made between August 2022 and May 2023 do not have an internal BEC and include an external 10-amp CC BEC.
https://www.castlecreations.com/en/microx2becupdate

Important Product Update, 8/2/2022. Due to ongoing supply chain disruptions, the manufacturer have been unable to manufacture the Micro X2. The parts in question are integral to the onboard 2-amp BEC. In an effort to provide the Micro X2 for sale again, the manufacturer has removed the internal BEC and are including their external 10-amp CC BEC (a $24 value) with every Micro X2 purchase. This upgraded BEC has a wider range of BEC voltages and much higher current capacity. The retail price for the ESC and combos has not changed. For instructions on how to install the CC BEC, please visit www.castlecreations.com/microx2BEC.

Putting the X in Extreme!

The Mamba Micro X2 is a refresh of our popular Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it boasts an 2 amp peak BEC,waterproof* and has SENSORED MOTOR SUPPORT.

This ESC is ideal for the weight conscious builder or where space is limited, used in low speed crawling or trail running in vehicles weighing up to 8lbs on 2s or 3s; it can also be used in slightly more aggressive setups like rock racing and extended hill climbing on vehicles up to 4lbs. Recommended motors include Castle's "Slate" crawler motors (combos available) and Holmes Hobbies Puller Pro 540 "Stubby" (≤ 2700kv)

If you're looking for a more aggressive setup in a heavier rig, like rock racing and extended hill climbing, we recommend you run the Mamba X ESC. Like its predecessor it includes improved features for rock crawling, including active drag brake and drag brake ramp.

Note: Use of an external BEC is required if running a high power or digital servo.

Features:
Input Voltage range 2S-4S
Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
Waterproof design.
Sensored Motor capable
Convenient transmitter programming for six common adjustable settings.
Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
Audible Alerts that will notify you of possible issues with calibrations and error conditions.
Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.

Includes:
Mamba Micro X2 ESC with 4 mm Connectors
Sensor Harness
Coupon for free Castle Link USB adapter
Driver's Ed and Quick Start Guide
Castle Decals

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

Input Voltage Range: 2S-4S LiPo (16.8V Max)
BEC Specifications: Adjustable; 5.5V or 7.5V (default 5.5V) 2A Peak
Operating Environment: Waterproof* design allows for use in nearly any environment
Brake: Proportional
Reversible: Yes, but may be disabled
On/Off Switch: Yes, waterproof
Cooling Fan: Not included
Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
Weight (with wires): 1.66 oz / 47 grams
Connectors: 4 mm bullets
Items Needed for Operation: Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
Product Use Statements: •Applying voltages higher than 16.8 volts will cause irreparable damage to your controller, voiding your warranty.
•Minimum recommended battery capacity for 1:18 scale vehicles is 1500mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
•Mamba Micro X has 3.5mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.
Application Guidelines: 1:14 scale RC vehicles weighing up to 3lbs and 1:10 scale low speed crawler vehicles up to 9lbs.
Recommended Motors: Castle 1406-1900Kv Sensored Motor
Castle 1406-2280Kv Sensored Motor
Castle 1406-2850Kv Sensored Motor
Max. Recommended Vehicle Weight: 1:14 scale RC vehicles weighing up to 3lbs and 1:10 scale low speed crawler vehicles up to 9lbs.
Programmability: Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.
Tech Notes: *Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
