Gmade GS02F TS Portal Kit with Spider Body

Gmade GS02F TS Portal Kit with Spider Body



More Photos:


RPP Price: $369.99
PRE-ORDER

Note: Some coupon discounts not available

STOCK STATUS:
Out of Stock



Part Number: GMA57014
Qty:

Description

** Available for Pre-Order **
ETA Late March
(Updated 2/26/24)

Note: Orders placed with Pre-Order items are held until the Pre-Order item is available and the order ships complete.
All orders must be paid in full at the time the order is placed. See our terms and policies page for more information.
ETA shown is strictly ESTIMATED time of arrival as provided to us by the Distributor and/or Manufacturer.
Contact 707-462-4152 Or [email protected] for split shipment options.





Items Needed To Complete:

Shown with custom painted body. Included body is clear.


Steel Ladder Frame
The frame of GS02F chassis is designed to look like real cars’. It is made of high strength steel and the C-channel side rail with hex wrench bolted cross members make it resistant to twisting and warping. The steel parts are finished with powder coats to prevent rusting.

Inner Fenders
The inner fenders are directly fixed to the frame to reduce flex and bend of the chassis and parts. They also avoid external objects entering into the chassis during the driving.

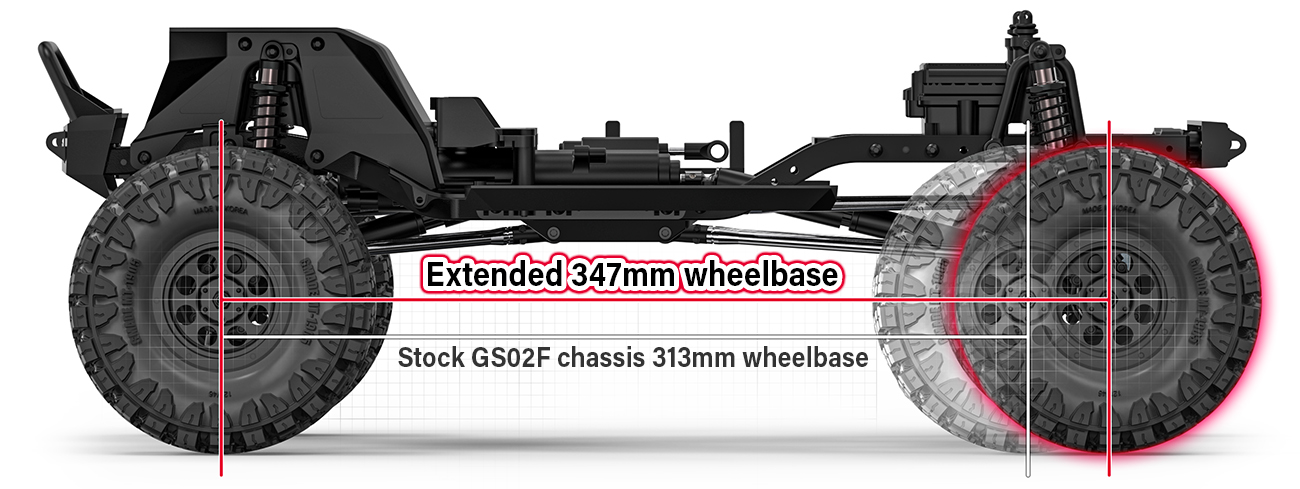

Extended 347mm wheelbase
Extended wheelbase makes climbing and rough terrain driving more stable and smoother.

Front weight balance
Weight balance of the GS02F chassis is leaning forward. This increases traction of the front wheels and provides better crawling performance at high angle hills or rocks. It also minimizes rolling over backwards when climbing.

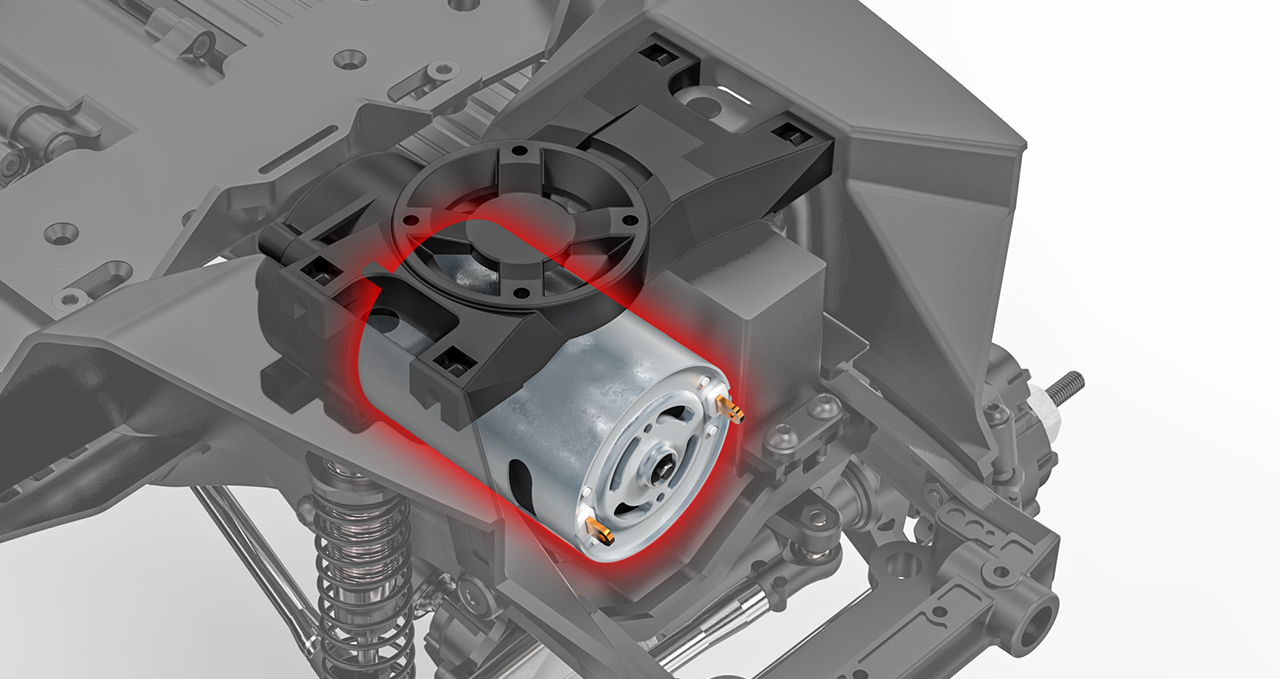

Front Mounted Motor
Front mounted motor helps the vehicle’s weight balance to the front. Either a 540 or 550 size motor can be mounted and a cooling fan will be easily fitted to the incorporated structure.

Standard Pack(Max width: 156mm) Shorty Pack(Max width: 98mm)

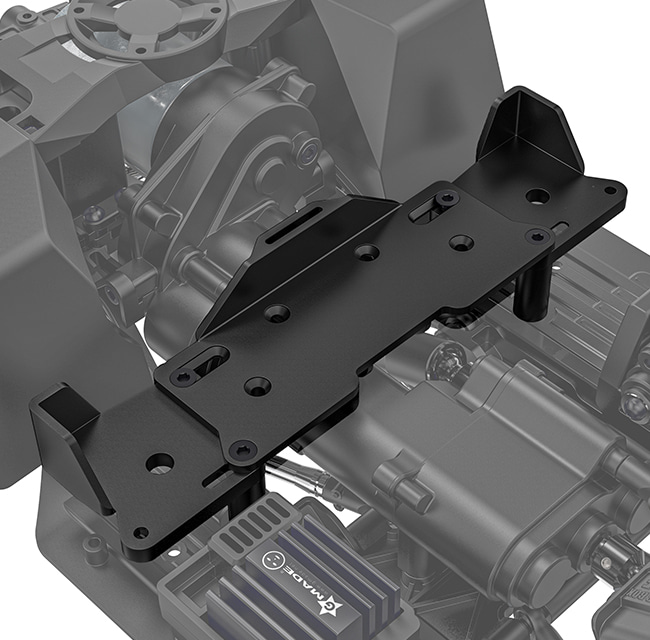

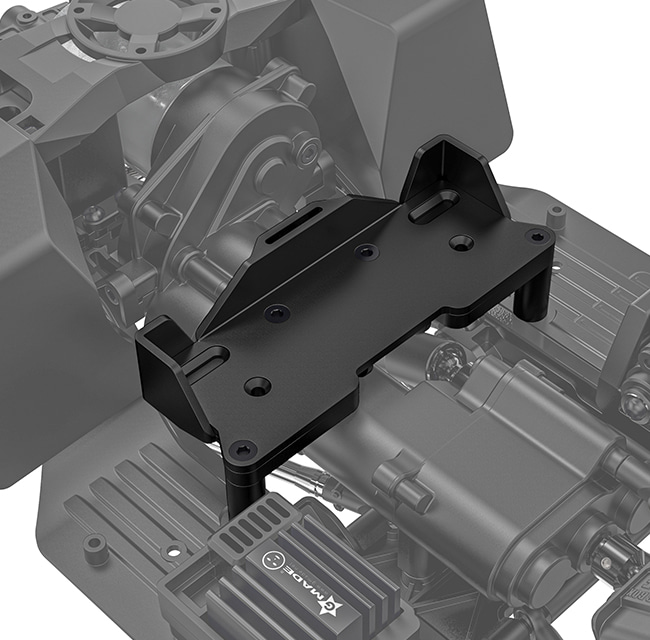

Multiple Battery Sizes
Size changing battery tray of the GS02F chassis can hold all sizes of Lipo and Ni-MH batteries.

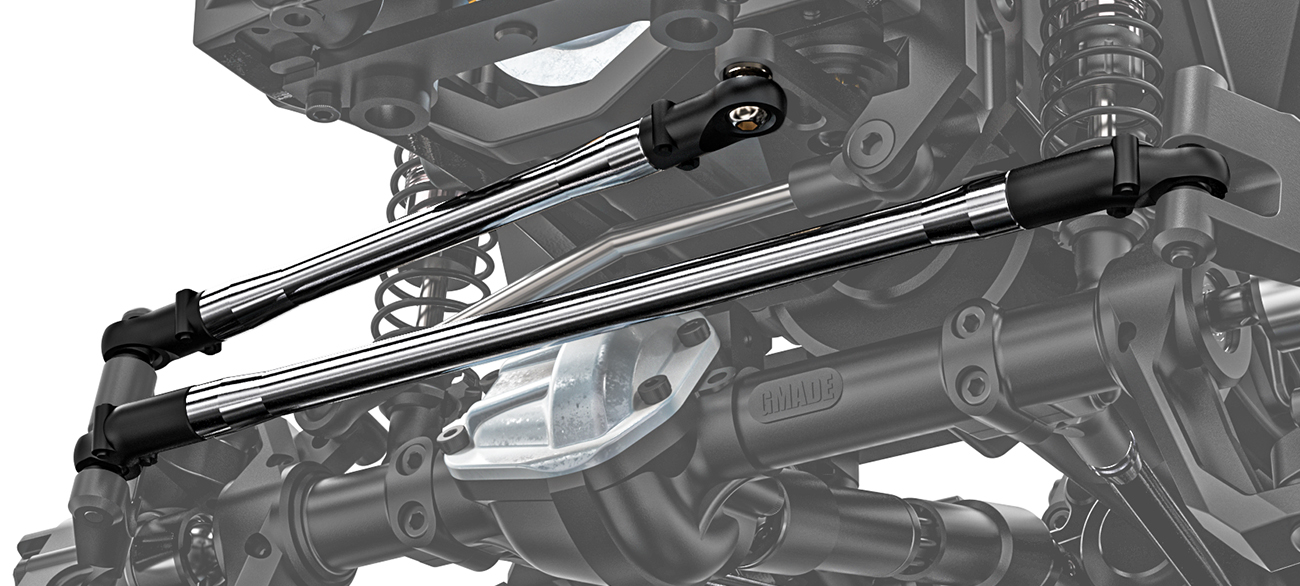

Chassis Mounted Servo system with panhard bar
Steering servo in the GS02F chassis is located on the frame just as the real cars. Therefore the system eliminates bump steering effects which appear by the front wheel suspension movements. Additionally the panhard-bar is installed and cleverly designed to avoid any interference with nearby parts, so the front suspension and shocks can move freely.

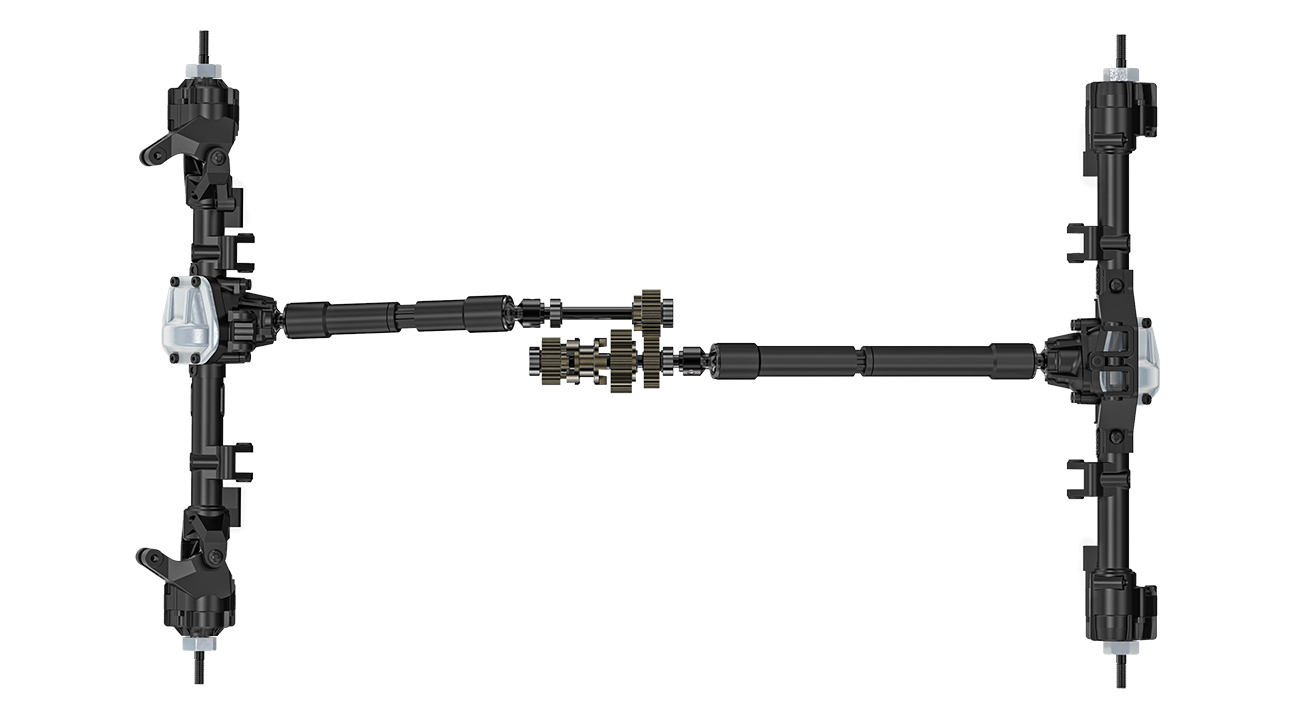

Drivelines
The drivelines to the front and rear axles are designed to arrange in a straight-line and this reduces fatigue or stress of the universal shafts and loss of power delivery.

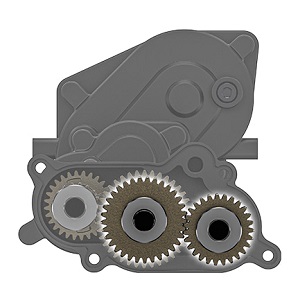

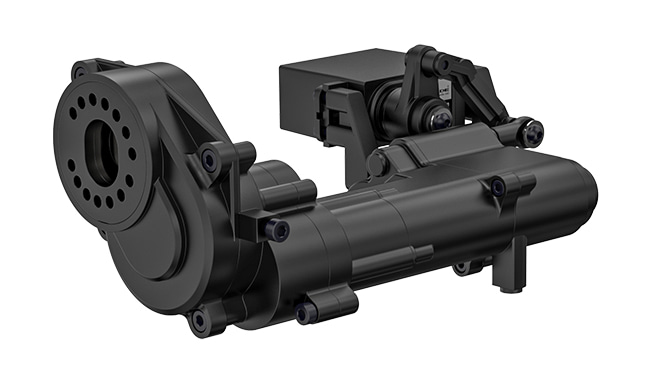

Transmission
Transmission of the GS02F chassis is designed to look as that of real vehicles. It also provides best performance for every driving situation.

Overdrive
Overdrive system means the front and the rear wheels rotate for different speeds. The GS02F transmission is designed to rotate the front wheels faster than the rear wheels.
No overdrive (Option)
30T / 30T (GMA30172)
Overdrive 1 (Stock)
32T / 28T
Overdrive 2 (Option)
33T / 27T (GMA30168)
Various surface terrain, when there is a large percentage of driving on flat land.
Overdrive percentage : 0%
front wheel : 100rpm / rear wheel : 100rpm
Various surface terrain.
Overdrive percentage : 14.29%
front wheel : 114rpm / rear wheel : 100rpm
Extreme surface terrain.
Overdrive percentage : 22.22%
front wheel : 122rpm / rear wheel : 100rpm

2-speed HI/LO transmission
The 1st gear is for hardcore rock crawling and the 2nd gear is for hill climb or high-speed driving.

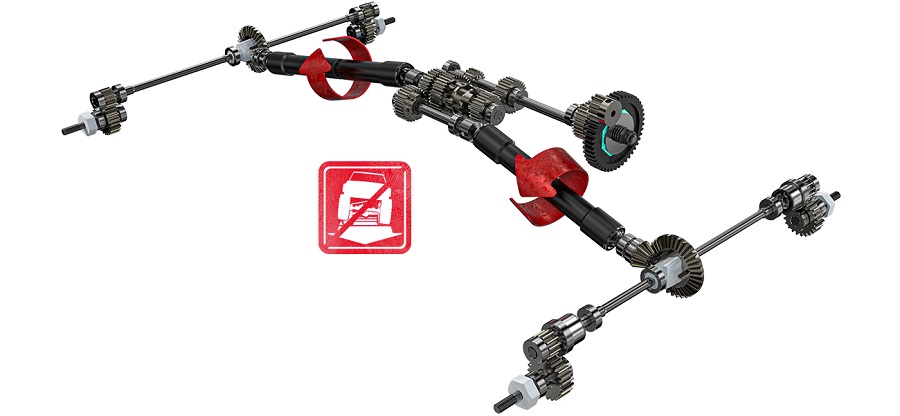

Torque Twist Reduce transmission
TTR(Torque Twist Reduce) transmission is designed to reduce unnecessary torque so the vehicle will drive with more stability. From the transmission, the front and rear universal shafts rotates clockwise and counterclockwise, and these opposite rotations compensate for rotational forces of action(torque) and reaction(reverse torque).

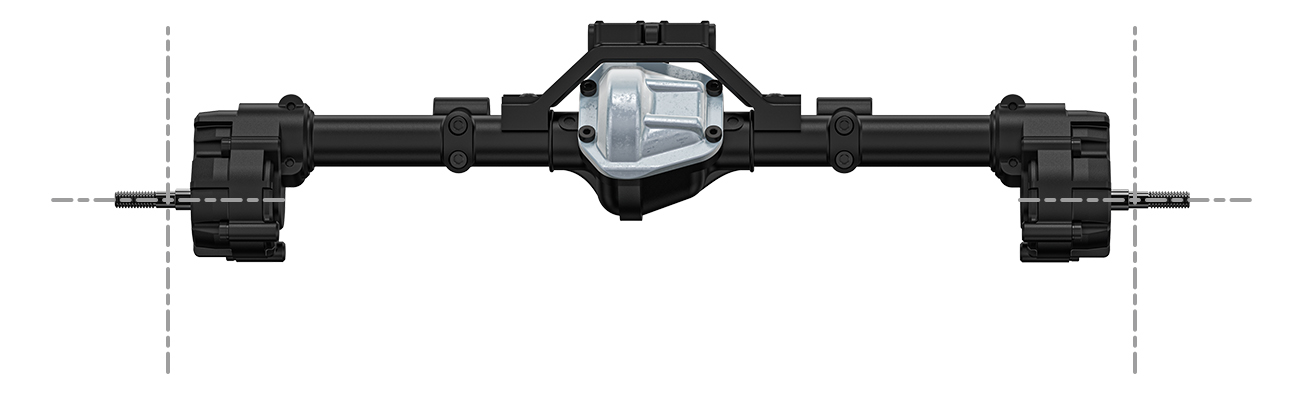

GA44P Portal axle
Higher ground clearance and anti-torque performance provided by the GA44P portal axle realizes excellent off-road driving performance in extreme terrain. It is made of high-strength material and equipped with uniquely designed tilted differential covers and this design will help decrease damages of the differential covers and smoothly climb over the obstacles.

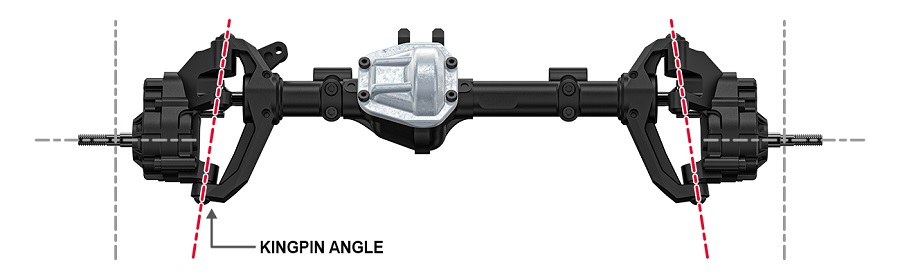

Kingpin angle
Keeping the scrub radius to a minimum to let your steering servo work at it's full potential and increases the steering efficiency.

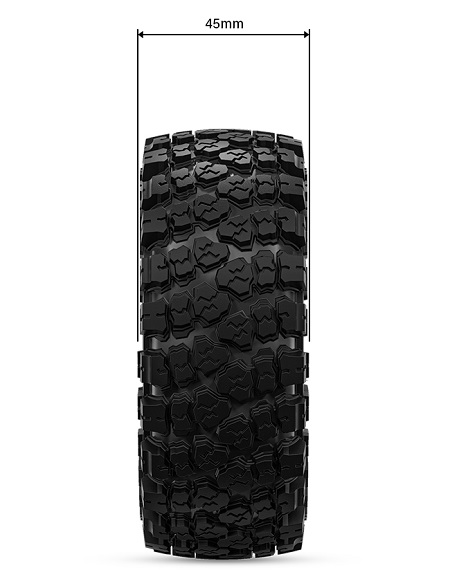

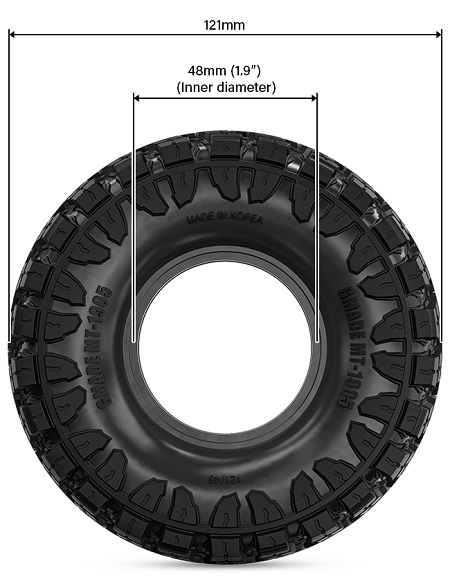

MT-1905 1.9 INCH M/T OFF-ROAD TIRE
The MT 1905 off-road tires, made of super soft compound material provide much traction to the surfaces. The tread patterns are suitable for off-road driving and the large diameter of the tires enables it to run smoothly on any uneven road surfaces.

Tire Specifications:
Tire Height: 121mm
Tire Width: 45mm
Inner Diameter: 48mm (1.9")

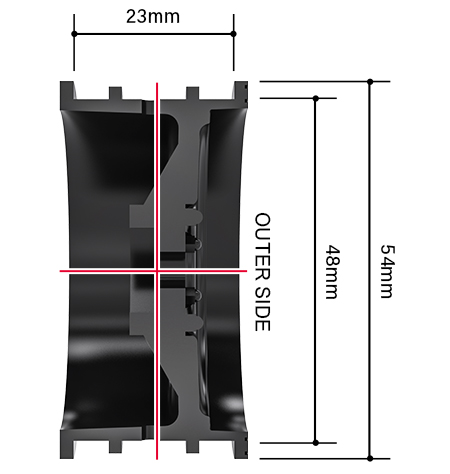

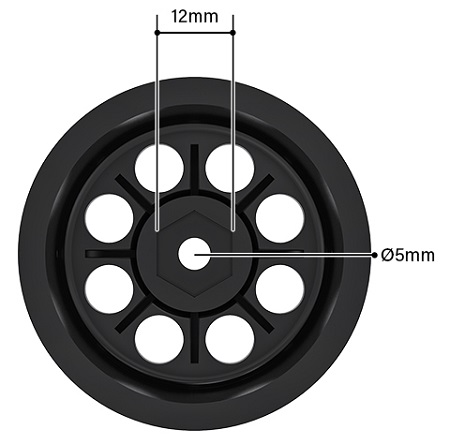

Wheel Specifications:
1.9INCH NR03 WHEEL
Width : 23mm
Diameter : 48mm (1.9")
Offset : 0.5mm positive offset
Hex mount : 12mm

Vehicle Specifications:
Width : 269mm
Height : 255mm
Length : 486mm
Wheel base : 347mm

Ground clearance : 82mm
Weight (no electronics) : 2.36kg
