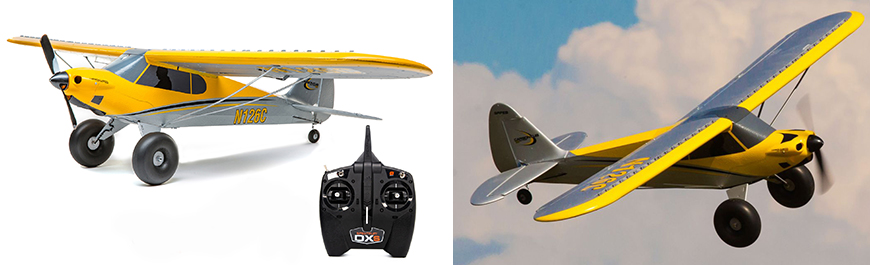

The HobbyZone® Carbon Cub S 2 is the most versatile, capable and easiest to fly scale RC trainer airplane yet! It's equipped with SAFE® and can be upgraded to SAFE Plus GPS-enabled technology to make learning to fly even easier than ever before!
The most capable, versatile and easiest to fly scale trainer based on the iconic Carbon Cub from CubCrafters
Equipped with exclusive SAFE® technology that helps prevent crashes and makes it easy to learn how to fly
Beginner, Intermediate and Experienced flight modes you can easily change between at the flip of a switch
Includes almost everything needed to fly except for a compatible LiPo battery and charger (sold separately)
Spektrum™ DXS controller/transmitter with industry-leading DSMX® 2.4GHz technology for reliable control without interference
Introduction:
If you've never flown a radio controlled (RC) aircraft before, the Carbon Cub S 2 is the most versatile, capable and easiest to fly scale RC airplane yet! Based on the Carbon Cub by CubCrafters, an upgraded and thoroughly modern iteration of the classic Super Cub, and equipped with Horizon Hobby's exclusive and innovative SAFE technology, this scale replica makes it possible for almost anyone to learn to fly successfully. The durable EPO airframe is equipped with an efficient brushless motor along with a telemetry-capable ESC plus a factory-installed flight controller, receiver and servos. The taildragger landing gear with oversized "tundra" style tires and a steerable tailwheel make it possible to take off from and land on a wide variety of surfaces from pavement to grass and even gravel. Or optional floats (sold separately) can be installed for takeoffs from and landings on water. Best of all, the option to add SAFE Plus® GPS-enabled technology and the Landing Assist Sensor (LAS) makes learning to fly even easier than ever before!
Features:
The most capable, versatile and easiest to fly scale trainer based on the iconic Carbon Cub from CubCrafters
Equipped with exclusive SAFE® technology that helps prevent crashes and makes it easy to learn how to fly

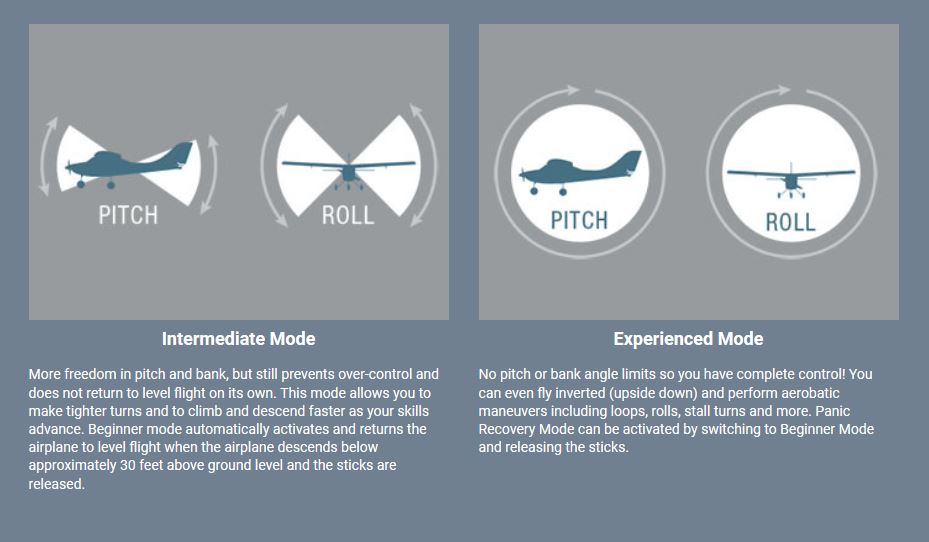

Beginner, Intermediate and Experienced flight modes you can easily change between at the flip of a switch

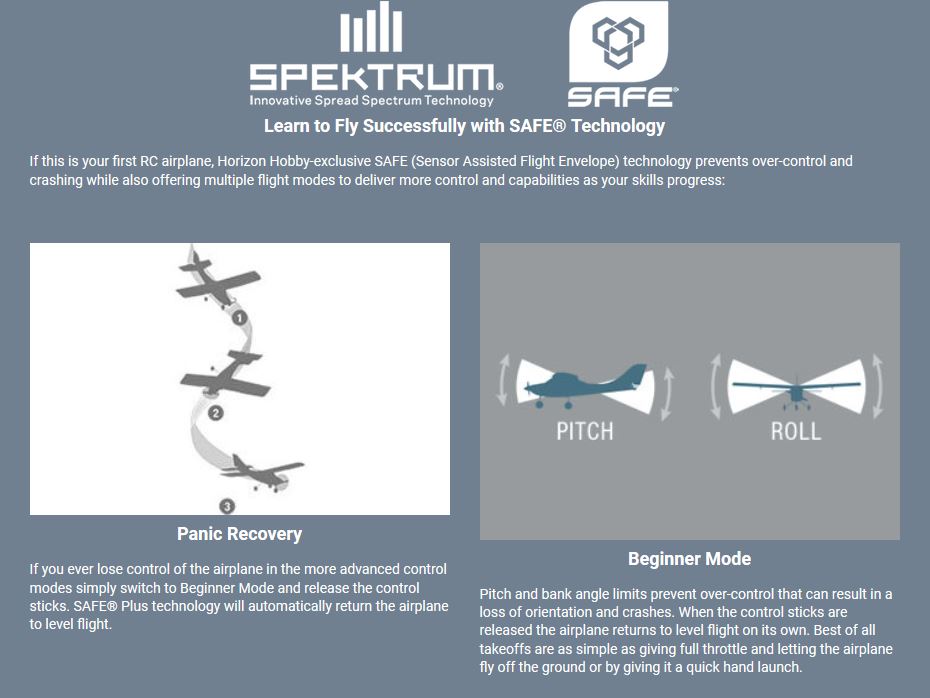

Panic Recovery mode at the push of a button to prevent loss of control and crashes
Easily upgrade to SAFE Plus GPS-enabled technology to add AutoLand, Virtual Fence and Holding Pattern features
Optional and easy to install Landing Assist Sensor (LAS) available for smoother landings
Includes almost everything needed to fly except for a compatible LiPo battery and charger (sold separately)
Spektrum™ DXS controller/transmitter with industry-leading DSMX® 2.4GHz technology for reliable control without interference
Use a 3S 1300mAh battery for great performance overall, or a 3S 2200mAh battery for more flight time
Factory-installed Spektrum servos, flight controller and serial receiver
4-channel control with four servos for training to full aerobatic capability
Powerful and efficient brushless power system including a 30A telemetry-capable ESC

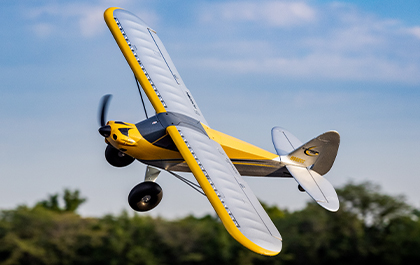

Capable of aerobatic maneuvers including loops, rolls and upside down (inverted) flight
Robust landing gear with oversized tires for operation from a variety of surfaces
Quick and easy assembly—no glue or special tools required
Durable EPO construction that's tough yet lightweight
Full line of replacement/spare parts available
Optional floats available for flying from water (sold separately)
Practice flying this aircraft in the RealFlight® RC flight simulator (sold separately)
Includes:

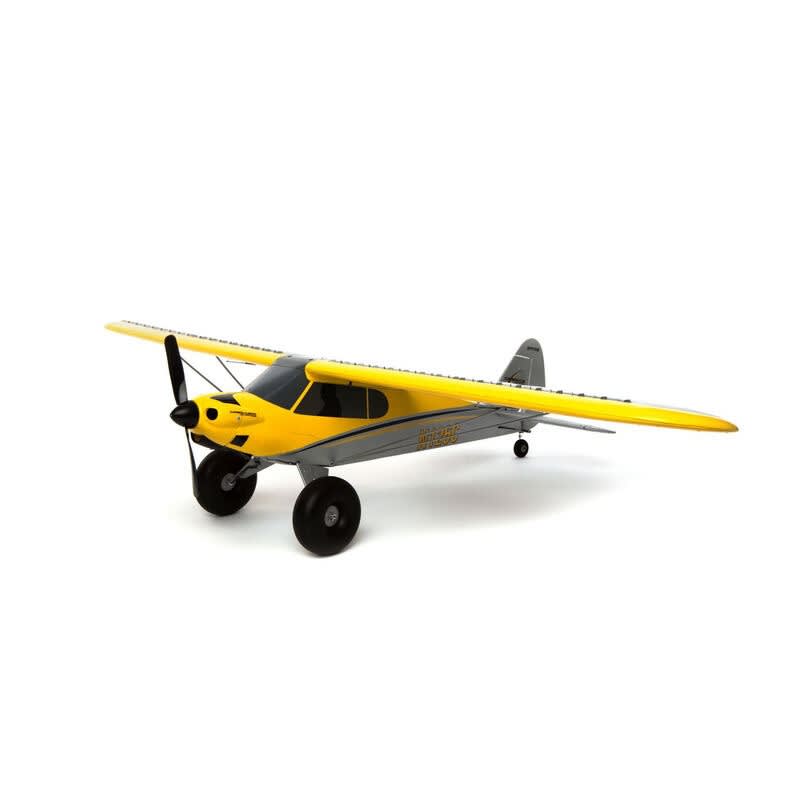

(1) HobbyZone Carbon Cub S 2 1.3m
(1) Brushless Outrunner Motor (installed)
(1) 30A Brushless Telemetry-Capable ESC (installed)
(4) Sub-Micro Servos (installed)
(1) Spektrum™ 3230A Flight Controller (installed)
(1) Spektrum 4650C Serial Receiver (installed)
(1) Spektrum DXS 2.4GHz DSMX® Transmitter
(1) Product Manual
Needed to Complete:
(1) 3S 11.1V 1300–2200mAh LiPo battery with EC3™ or IC3® connector*
(1) Compatible LiPo Charger*
*The recommended Spektrum™ Powerstage 2 bundle (SPMXPSA200) includes a compatible 3S 2200mAh Smart G2 LiPo battery and S120 USB-C Smart charger that can be used with a variety of USB power sources.
 | Ready-To-Fly Basic Flexibility
This Ready-To-Fly (RTF) Basic version includes a Spektrum™ DXS controller/transmitter equipped with industry-leading DSMX® 2.4GHz technology and everything else you need to fly except for a rechargeable lithium polymer (LiPo) battery and charger for the airplane. The convenient and money-saving Spektrum™ Powerstage 2 bundle (SPMXPSA200) includes a compatible 3S 2200mAh Smart G2 LiPo battery and an S120 USB-C Smart charger that can be used with a variety of USB power sources. Or you can choose the separate 3S 1300–2200mAh battery and compatible charger you prefer! |
 |  | Telemetry Capable
The Carbon Cub S 2 1.3m is equipped with a telemetry-capable ESC that can provide a variety of real-time power system related telemetry data to compatible transmitters. This includes approximate flight battery power remaining via multiple LEDs and audible alerts from the DXS transmitter included with the RTF Basic version. It will also provide motor RPM, current, overall battery voltage and more to Spektrum AirWare™ equipped transmitters (including the DX6e and 8e, DX6 G2/G3 and 8 G2, the DX9, the NX6, 8 and 10, the iX12, iX20 and others) while you fly. | Durable Design
Construction with advanced EPO material delivers a lightweight yet durable airframe that's tough enough to handle everyday flying punishment without getting bent out of shape. And in the unfortunate event you damage any airframe parts or components and can't repair them, a full line of replacement parts is readily available. |  |  | Easy Assembly

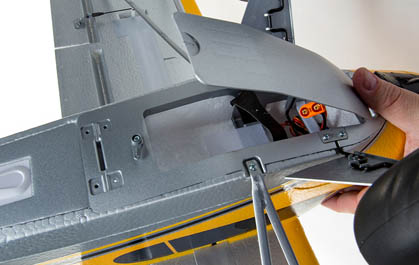

The Carbon Cub S 2 arrives mostly factory-assembled with the power system, servos, flight controller and receiver installed. All you need to do is finish some quick and easy final assembly, without the use of glue or special tools, and you'll be ready to fly in less time than it takes to charge a battery! | Versatile Gear Options

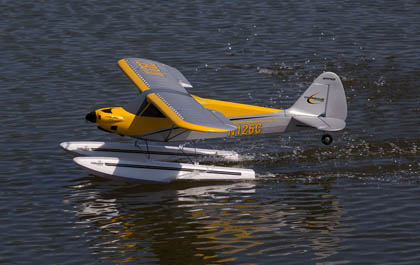

Thick grass, gravel paths, dirt trails; you can fly from these and many other surfaces that are impossible for most models of this size to handle. The robust landing gear is equipped with oversized tires that soak up the bumps of rough surfaces and provide excellent prop clearance. The optional float set (HBZ7390, sold separately) takes just a few minutes to install and all the necessary hardware is included with the aircraft and float set so you can fly from lakes and ponds. |  |  | Optional Flaps

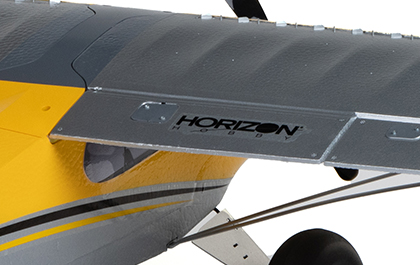

Functional flaps are an option for improved slow speed handling and even shorter takeoffs and landings. This feature requires a 7+ channel computer transmitter plus a flap servo and a servo extension (sold separately). | Optional Landing Assist Sensor for Smoother Landings

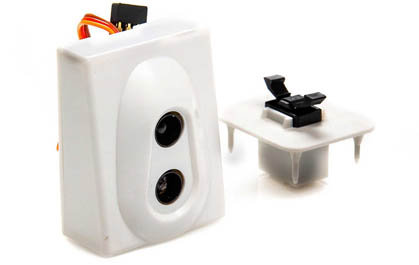

The Spektrum Landing Assist Sensor (LAS) is easy to install and provides automatic "flare" control to help inexperienced pilots "grease" landings by minimizing or completely eliminating bouncing (works over many/most surfaces and provides optimum performance when flying over/landing in grass). |
 | Easily Upgrade to SAFE® Plus GPS-Enabled Technology
With quick and easy installation of the optional Spektrum GPS Module (SPMA3173; sold separately), you can add next-level autonomous guidance features that make it even easier to learn to fly. With SAFE Plus added, you get:
AutoLand
Activated by simply holding down a button, the advanced AutoLand function puts the airplane on a stabilized approach to land on its own near the GPS initialization point. You can even provide some directional guidance to avoid obstacles or to adjust the approach while letting the system do the rest to execute a safe landing. As your skills progress and you gain more confidence, you can take over more control inputs, eventually learning to land without any assistance from the automated system.
Holding Pattern
This beneficial SAFE Plus-exclusive feature allows you to "pause" the flight by putting the airplane into a GPS-guided holding pattern. When activated with the quick press of a button, the aircraft will automatically return to a position above the GPS initialization point and circle until the command is canceled with another quick press of the button. It's a great way to safely hand the controls off to a friend or regain visual contact if you ever lose sight of the model.
Virtual Fence
It's easy to accidentally let an RC airplane fly too far away, but with Virtual Fence, worry no more! It creates an invisible boundary the airplane won't fly past. When the plane reaches this boundary, it will automatically turn around and fly back toward the GPS initialization point. Then it will "wag" the wings to let you know when you have control again.
|
Specifications:
| Product Weight | 32.2oz (913g) without Battery | | Power Type | Electric | | Servos | Included | | Skill Level | Level 1 | | Wingspan | 51.18" (1300 mm) | | Completion Level | Ready-To-Fly Basic | | Recommended Motor Battery | 3S 11.1V 1300–2200mAh LiPo with EC3 or IC3 Connector | | Approximate Assembly Time | Less than 1 Hour | | Flaps | No | | Material | EPO | | Battery | Sold Separately | | Charger | Sold Separately | | Connector Type | IC3 | | Receiver | Included | | Motor Size | 480 Brushless Motor 960kV | | Product Length | 34.06" (865 mm) | | Motor Type | Brushless | | Speed Control | Included | | Radio | Included | | Technology | AS3X and SAFE |
|
|
|
 |
|
 |
|
