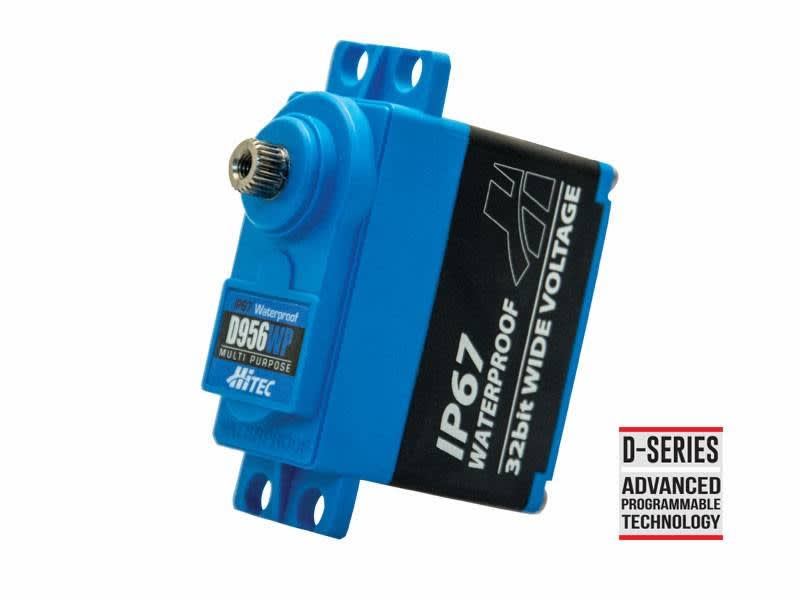

Hitec RCD D956WP High Torque Waterproof Steel Gear Digital Servo
Hitec RCD D956WP High Torque Waterproof Steel Gear Digital Servo



More Photos:


RPP Price: $129.99
Note: Coupon discounts not available

STOCK STATUS:
 In Stock!

Part Number: HRC36956
Qty:

Description

The D956WP has arrived! Based off the D954SW servo, this IP-67 rated version is the true waterproof, dust resistant upgrade for 1/10th-scale Rock Crawlers and Off-Road Trucks. As with our entire D line, this technologically-advanced servo is powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. The unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. With incredibly durable steel gears, dual ball bearing and hardened steel output shaft, the high-end performing D956WP produces the mighty torque and reliability required to take bashers to the next level.

Features
Programmable PWM Digital Amplifier
32-Bit MCU with 12-Bit ADC Circuitry
4096 Resolution
1M Cycle Long Life Potentiometer
Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
Dual Ball Bearing Supported Output Shaft
25-Tooth Output Spline
Coreless Metal Brush Motors
Nylon Reinforced Plastic Upper and Lower Case
Diamond Cut Aluminum Heat Sink Center Case
Water Resistant and Waterproof Proof Case

Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset

Accessories
3 Steel Alloy Gears Set | Link |
Metal / Karbonite 1st Gear Set | Link |
Plastic / Aluminum Case Set | Link |
Applicable Horns & Screws

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 7.4V
Speed (Second @ 60): 0.19 ~ 0.12
Maximum Torque Range oz. / in.: 251 ~ 405
Maximum Torque Range kg. / cm.: 18.0 ~ 29.0
Current Draw at Idle: 30 mA
No Load Operating Current Draw: 500 mA
Stall Current Draw: 5,200 mA
Dead Band Width: 1 s

Physical Specifications
Dimensions (Inches): 1.57 x 0.78 x 1.46
Dimensions (Metric): 40.0 x 20.0 x 37.0
Weight (Ounces): 2.40
Weight (Gram): 68.0
Circuit Type: 32bit Programable Digital
Motor Type: Coreless Metal Brush
Gear Material: MK 1st Gear & 3 Steel Alloy Gears
Bearing Type: Dual Ball Bearing
Output Shaft (type / mm): H25T
Case Material: Plastic / Aluminum
Dust / Water Resistance: IP67 Rating
Connector Gauge (AWG) / Strand Count: 20 / 80

Radio Control Applications
Parkflyer: N/A
Sport Plane: 30 - 40%
Sailplane: 2 meters and up
3D Performance: 30 - 40%
Scale: 30 - 40%
Electric Helicopter:N/A
Gas Helicopter: N/A
On Road: 1/8th
Monster Truck: 1/8th
Buggies: 1/8th
Truggies: 1/8th
Short Course / Truck: 1/8th
Crawlers: 1/8th
Sail Boat: = >1M & Scale
Power Boat: N/A
