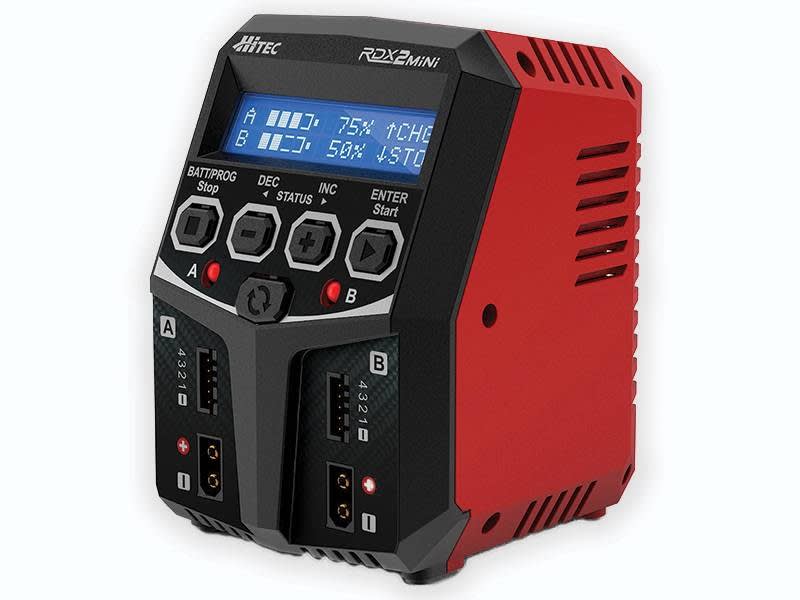

Our RDX Battery Charger line offers an array of efficient, sleeRDX2_Manual_FINAL.pdfkly-designed chargers for all discerning hobbyists. The new RDX2 Mini is a two-channel charger, featuring independent circuits which allow the user to charge two batteries simultaneously, regardless of chemistry or capacity. With a powerful, combined 100 watt charging output and 5A current, the RDX2 Mini offers the punch needed to charge 2-4 cell packs at an affordable price. The convenient front-loading design has the balaRDX2_Manual_FINAL.pdfncing and XT60 ports readily accessible for ease of operation at your workshop, flying field or raceway. Additional features include AGM and Cold Charge Modes to safely and easily charge conventional lead-based and absorbed glass mat batteries in cold conditions.
Features
User-Friendly LCD Interface
Stores 10 Different Battery Memory Charge/Discharge Profiles
AGM and Cold Charge Modes
Terminal Voltage Control
Built-in Balance Connector
Balance, Standard, Fast and Storage Modes for All Lithium Battery Chemistries
Re-Peak Charge Mode and Delta-Peak Sensitivity For NiMH/NiCd Batteries
Optional Temperature Sensor for NiCd/NiMH Charging
Two (2) Built-in XT60 Connectors
Smart Ventilation Fan
Charging Specifications
AC Input: 100-240 Volts AC
Charge Power: 100 Watts (2x 50 Watts)
Charge Current Range: 0.1 – 5.0 Amps
Discharge Power: N/A
Current Drain for LiPo Balancing: 300mA per Cell
NiCd/NiMH Battery Cell Count: 6 - 8 Cells
LiPo/LiHV/LiFe/Lilon Cell Count: 2 - 4 Cells
Pb Battery Voltage: 6 - 12 Volts
Dimensions: 3.5 x 3.9 x 5.0 in. (90 x 100 x 127mm)
Weight: 1.1 lbs. (50kg)
Set Contains
RDX2 Mini Charger
AC Cord
Two (2) T-Type Connectors
