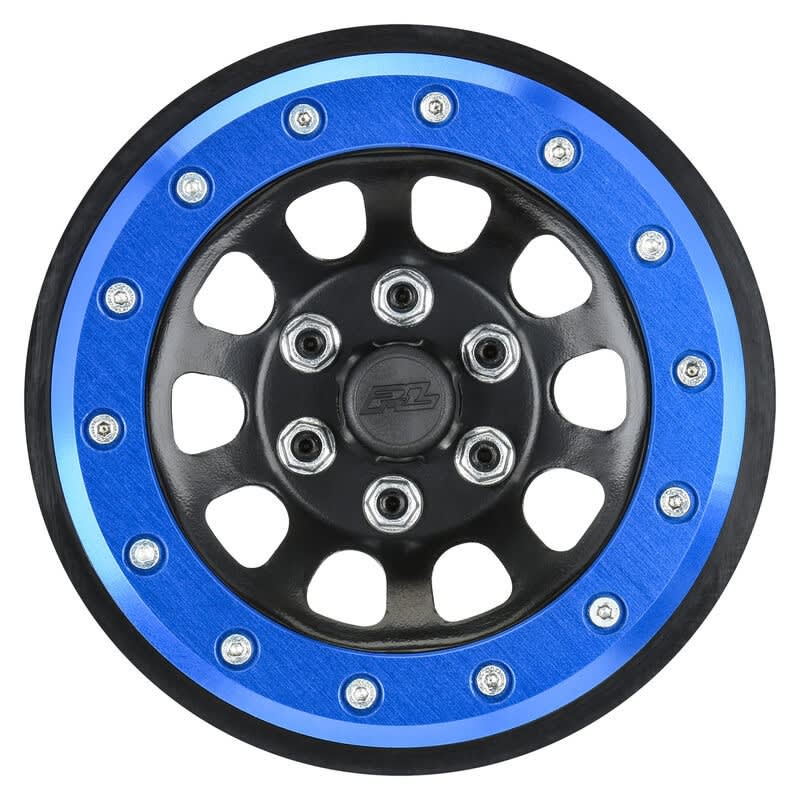

This is a pair of Steelies 2.9" Wheels for SCX6™. Introducing a unique, no-nonsense, trail-proven wheel solution for the Axial® SCX6™! The Steelies Wheel features a Black Powder Coated Stamped Steel wheel face with anodized aluminum rings pre-installed into the wheel face.
This Internal bead-loc style wheel can be configured with 2 different offsets. Install the +2mm offset hex or +10mm offset hex to push the wheel further outwards, giving you more stability and clearance for wide tires.
Give your SCX6™ a tough look with Pro-Line's Steelie wheels!
Assembly Instructions
Stuff the Internal Bead-loc Ring into your tire, making sure it is centered and fully seated.
Assemble the Steel Front Face and the Back Face using (6) M4x14 BHCS, capturing the tire bead.
Choose your offset:
For a +2mm offset, (pre-installed) align the Hex Adapter holes with the back of the wheel face. Secure using (6) M3x20 Set Screw
For a +10mm offset, align the Hex Adapter holes with the back of the wheel face. Secure using (6) M3x20 Set Screw
Install the Wheel & Tire onto your SCX6™ using the stock wheel nut
Install the P-L Hub Cap by pressing it into the wheel center.
Includes:
(2) Steelies Stamped Steel Wheel face
(2) Inner Wheel Face
(2) Internal Bead-Loc Ring
(2) +2mm Hex Adapter
(2) +10mm Hex Adapter
(2) P-L Hub Cap
(12) M3x20 Set Screw with Flange Nut
(12) M4x14 BHCS
Features:
Stamped Steel Wheel Face
Powder Coated for Durability
Tough Scale Looks
Anodized Aluminum Rings
Hex Adapters for +2 or +10mm offsets
Fits:
Axial® SCX6™
Specifications:
Color: Black, Blue
Inner Tire / Outer Wheel Diameter: 2.9 in
Package Type: Wheels Only
Scale: 1/6
Vehicle Type: Rock Crawler
Wheel Hex Size: 17mm
Wheel Position: Front/Rear
Wheel Type: Steelies
