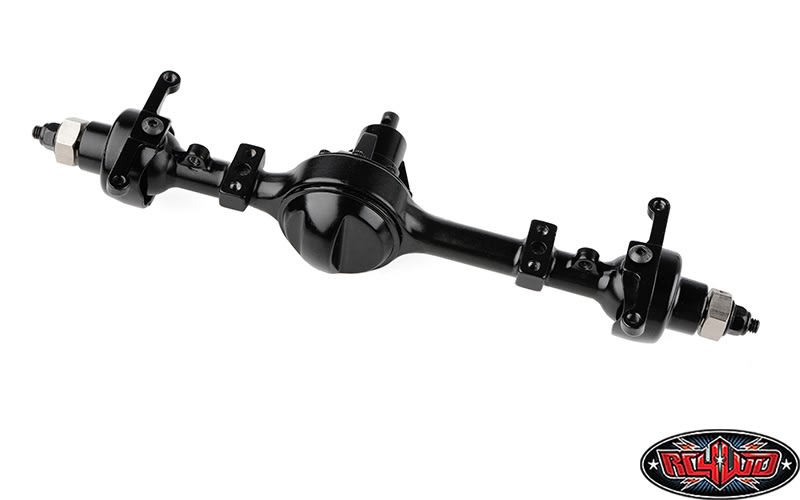

RC4WD Yota II Ultimate Scale Cast Axle V2 (Front)

The most Scale and complex Axle on the market just became even better! Extremely Scale to the smallest details, such as innovative round knuckles (just like the real thing), Removable offset third member and replaceable pumpkin.

Specifications:
Engineered and Manufactured by RC4WD
Designed for 1:10 Scale Truck
Die Cast light Weight Metal Housing
Hardened Steel Spool Gears
5mm Axle Output Shaft
Full Ball Bearings
Powder coated in black
Width: 180mm / 7.09inch
Gear Ratio: 2.67 : 1
12mm Steel Wheel Hex
Weight (Front): 166gram / 5.85oz

Shown installed on RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Autobiography Limited Edition) (Z-RTR0043) for example (Not Included)




These updated axles have been upgraded with XVDs, providing sturdier construction and a greater steering angle than stock counterparts

What's Included:
1x RC4WD Yota II Ultimate Scale Cast Axle V2 (Front)

Other Yota II Axles:
Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)

Replacement Parts:
Axle Ring & Pinion Gears (Z-S0027)
Replacement Third Member (Z-S0813)
Replacement Diff Cover (Z-S0812)
Socket Head Cap Screws M2 X 6mm (10) (Z-S0611)
Bearing Kit for Yota Ultimate Scale Front Axle (Z-S0080)
XVD Axle for Ultimate Scale Yota II G2 TF2/TF3 Axle (Z-S0823)
RC4WD Replacement Hardware for Front Yota II Axle V2 (Z-S0261)
RC4WD Knuckle Bushings for Yota II Axle V2 (Z-S0262)
Replacement Cast Knuckles for Yota II Axle V2 (Z-A0007)
Front Replacement Case Housing for Cast Yota II Axle V2 (Z-A0075)

Optional Parts:
Yota II Scale Diff Cover (Z-S0907)
Helical Gear Set for 1/10 Yota and K44 Axles (Z-G0059)
XVD Axle for Ultimate Scale Yota II (Z-S0823)
Steering Link Set (Z-S0938)
Ultimate Axle 4 Link Mount (Z-S0133)
Axle U Bolt Kit (Z-S0304)
RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)
5mm x 9mm x 0.3mm Axle Shims (Z-S1559)
Knuckle Bushings for Yota II Axle (8) (Z-S1784)
RC4WD Baer Brake System Rotor Set (1.7"/1.55") (Z-S1962)
RC4WD Baer Brake System Rotor Set (2.2"/1.9") (Z-S1963)
RC4WD Baer Brake System Caliper Set (2.2"/1.9") (Z-S2057)
RC4WD Baer Brake System Caliper Set (1.7"/1.55") (Z-S2058)
Yota II Axle Mounts for Baer Brake Systems Rotors and Calipers-Front (Z-S1968)
3 Link Kit For Trail Finder 2 Front Axle w/Panhard Setup (Z-S0565)
Leaf Under Mounts for Yota 2 / K44 Axles (Z-S2135)
U-Bolt Kit for Yota 2 Axles (Z-S2128)
RC4WD Lift Blocks for Yota and K44 Axles (Z-S0011)
RC4WD 120mm Hardened Steering Link (FOA) (Z-S0194)
Replacement Cast Knuckles for Yota II Axle V2 (Z-A0007)
Front Replacement Case Housing for Cast Yota II Axle V2 (Z-A0075)

Instruction Manual:
Click here to download

Notes:
While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
Yota II Axles will fit Trail Finder 2. With the front Axle you will need the Yota II Steering Link Set (Z-S0938)

Axle Shimming Video:
Click Here
