Specifications:Die Cast Zinc Alloy Housing
Black Powder Coating
Removable Diff Cover
Hex Thickness: 6mm
12mm Wheel Hex
5mm Axle Output Shaft
Gear Ratio: 2.67 : 1
Designed and Manufactured by RC4WD
Designed for 1/10 Trucks
Hex to Hex Width: 6.97in / 177mm
Pin to Pin Width: 6.46in / 164mm
Pumpkin Height: 1.37in / 34.8mm
Weight: 8.53oz / 242g
Shown installed on RC4WD Cross Country Off-Road RTR W/ 1/10 Black Rock Four Door Body Set (Z-RTR0046) with Chubby Mini 3 TON Scale Jack Stands (Z-S0731) for example (Not Included)![]()

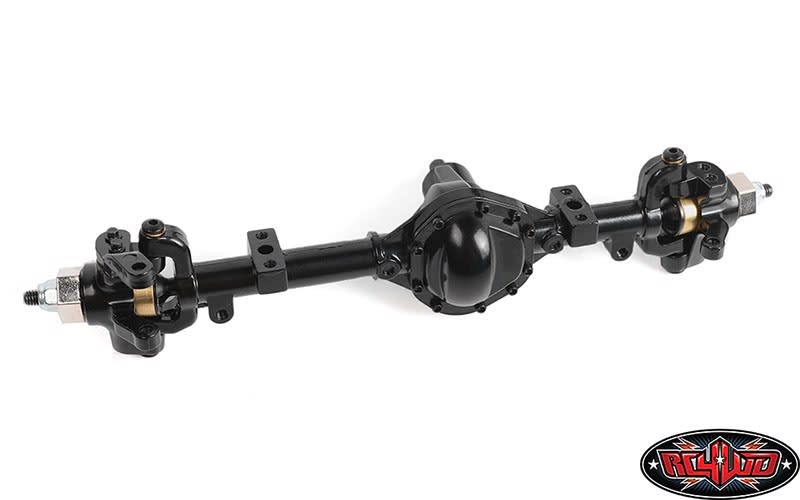

What's Included:1x K44 Ultimate Scale Cast Front Axle (Left Pumpkin)
Required Parts:K44 Cast Steering Link Set (Z-S1685)
Replacement Hardware:10x M1.6 x 4mm SHCS (Black) (Z-S1232)
4x M3 x 8mm BHCS (Black) (Z-S0652)
6x Metal Shield Bearing 5x11x4mm (Z-S0683)
2x Metal Shield Bearing 5x8x2.5mm (Z-S0684)
2x RC4WD 12mm Axle Wheel Hexes (Z-S0239)
2x Nylock Nuts M4 (Silver) (Z-S1265)
1x M4 E-clip (Black) (Z-S0919)
Optional Parts:Ultimate Axle 4 Link Mount (
Z-S0133)
RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (
Z-S0407)
Helical Gear Set for 1/10 Yota Axle (
Z-G0059)
Yota 1/10 Axle Ring & Pinion Gears (
Z-S0027)
RC4WD ARB Diff Cover for K44 Cast Axle (
Z-S1839)
RC4WD Poison Spyder Bombshell Diff Cover for Cast K44 Axle (
Z-S1847)
XVD for Cast K44 Front Axle (
Z-S1864)
Notes:Fits RC4WD Cross Country Off-Road RTR W/ 1/10 Black Rock Four Door Body Set (Z-RTR0046)
Fits RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler (
Z-RTR0034)
Fits RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
Fits RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Limited Edition) (Z-RTR0035)
Fits RC4WD Trail Finder 2 Truck Kit "LWB" w/ Mojave II Four Door Body Set (Z-K0058)
Fits RC4WD Trail Finder 2 Truck Kit "LWB" 1/10 Scale Long Wheel Base (Z-K0059)
Fits RC4WD Trail Finder 2 Truck Kit (Z-K0054)
Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
Fits Gelande II Truck Kit w/Cruiser Body Set (
Z-K0051)
