These are the all new RC4WD Bilstein B6 4600 Series Scale Shock Absorbers (100mm). These have been Officially Licensed by Bilstein and are only available from RC4WD and our Dealers.
![]()
These have our new X-Ring technology that reduces contact friction and improves oil flow and retention around the shock shaft!
Specifications:Machined Billet Aluminum
Yellow Powder Coated Finish
Internal Spring Design
Hole to Hole (Compressed): 2.83in / 72mm
Hole to Hole (Uncompressed): 3.94in / 100mm
Overall Length: 4.30in / 109.2mm
Travel Length: 1.10in / 28.0mm
Shock Body OD: 0.39in / 10mm
Shaft OD: 0.11in / 3.0mm
Each Weighs: 0.44oz / 12.5g

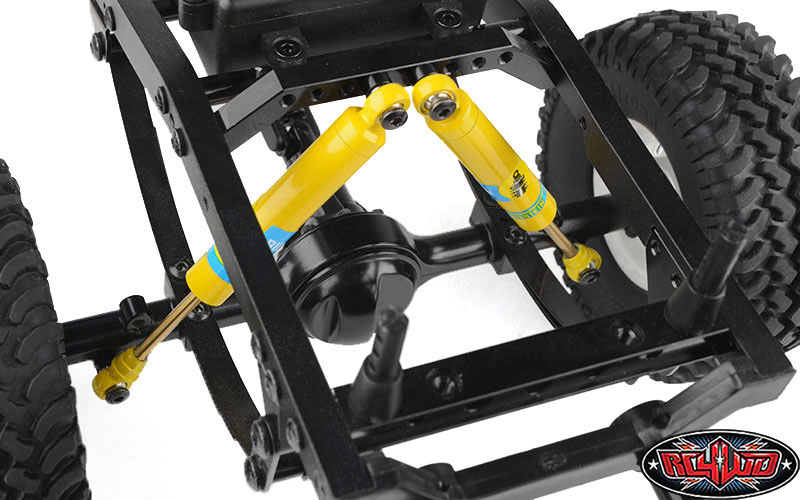

Shown installed on RC4WD Trail Finder 2 Truck Kit (Z-K0054) for example (Not Included)![]()
What's Included:2x RC4WD Bilstein B6 4600 Series Shock Absorbers (100mm)
1x Bilstein Decal Sheet
Optional Lengths:RC4WD Bilstein B6 4600 Series Shock Absorbers (60mm) (Z-D0016)
RC4WD Bilstein B6 4600 Series Shock Absorbers (70mm) (Z-D0021)
RC4WD Bilstein B6 4600 Series Shock Absorbers (80mm) (Z-D0044)
RC4WD Bilstein B6 4600 Series Shock Absorbers (90mm) (Z-D0046)
Bilstein is a registered trademark of the Bilstein company. The Bilstein logo is property of Bilstein and used under license to RC4WD.
