RC4WD Warn 1/10 Advanced Wireless Remote/Receiver Winch Controller Set

RC4WD Warn 1/10 Advanced Wireless Remote/Receiver Winch Controller Set



More Photos:
RPP Price: $47.99

STOCK STATUS:
 In Stock!


Part Number: RC4Z-E0130
Qty:

Description Technical Specs



This is the all-new RC4WD Warn 1/10 Advanced Wireless Remote/Receiver Winch Controller Set. It is Officially Licensed by Warn Industries and features an On/Off switch with LED indicator, lanyard strap, and a 1:1 detailed remote design with rubber buttons for improved operation. It is exclusively available on RC4WD.com and our partnered dealers.

Specifications:
Remote
Over 50ft Range
Batteries Included
Total Length: 2.10in / 53.5mm
Total Width: 1.06in / 27mm
Height: 0.59in / 15mm
Weight: 0.49oz / 13.9g
On/Off Switch

Receiver
Small Compact Size
Operating Voltage 6V to 11.1V
Easy Plug and Play
Instruction Included
Length: 1.6in / 40.4mm
Width: 1.2in / 30.2mm
Height: 0.37in / 9.4mm
Weight: 0.5oz / 14g

Wires
Length: 6.0in / 150mm
Wires Weight: 0.14oz / 4g

Lanyard
Total Length: 7.24in / 184mm
Weight: 0.14oz / 1.8g

Product
30 Day Warranty
Designed and Manufactured by RC4WD

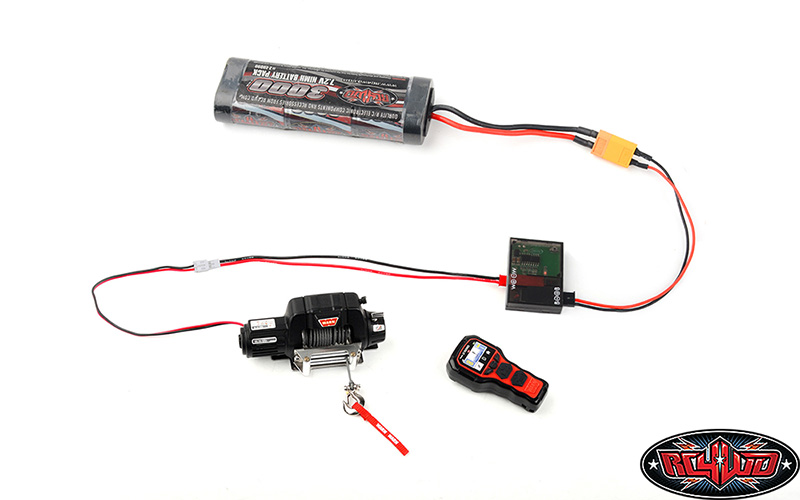

Shown installed with RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0092) and RC4WD 1/10 Warn 9.5cti-s Winch (Z-E0119) for example (Not Included)

What's Included:
1x WARN 1/10 Wireless Remote
1x Wireless Receiver Unit
1x 6" Battery/Receiver Power Wire
1x 6" Receiver/Winch Control Wire
1x Lanyard
1x Warn Decal Sheet

Optional Parts:
RC4WD 1/10 Warn 9.5cti-s Winch (Z-E0119)
RC4WD 1/8 Warn Zeon 10 Winch (Z-E0069)
RC4WD 1/10 Mini Warn 9.5cti Winch (Z-S1571)
RC4WD 1/10 Warn 8274 Winch (Z-E0075)
Wire Accessory Pack For Winch and Controllers (3") (Z-S1001)
Wire Accessory Pack For 1/10 Winch and Controllers (9") (Z-S0999)
RC4WD Carabiner with Web Strap & Keyring (Z-L0060)
RC4WD Y Harness with Tamiya Leads (Z-S1577)

Instruction Manual:
Click here to download

Notes:
For Warnings, Precautions, Safety and Damage Limits: Click Here
This Receiver on this product is waterproof but the Controller is not. You may be able to waterproof on your own but this will void the manufactures warranty.
Tampering with this product in any way would result in voiding the warranty.
Binding process can take 3-5 seconds.
Some LiPo battery voltage can be higher than 11.1 volts. Please be careful and check voltage before using your battery. Use a BEC if needing to use a 3 cell LiPo.
The remote comes with a 3V CR2025 button cell.

Warn and the Warn name are registered trademarks of Warn Industries. The Warn logo is property of Warn Industries and used under license to RC4WD.

Screen on the item is a decal, not a working screen
