RC4WD Trail Finder 2 RTR with Chevrolet Blazer Body Set (Rust Bucket Edition)

RC4WD Trail Finder 2 RTR with Chevrolet Blazer Body Set (Rust Bucket Edition)



More Photos:


RPP Price: $569.99
DISCONTINUED

Note: Coupon discounts not available

STOCK STATUS:
Out of Stock



Part Number: RC4Z-RTR0055
Qty:

Description



This RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Rust Bucket Edition) is a raw and gritty RC Truck! This set combines an exclusive licensed Chevrolet hard body with our ever popular TF2 Chassis. The Rust Bucket Edition RTR comes hand painted, meaning no two models share the same exterior design! Notice the attention to detail on the paint job with its realistic rust color and textured finish. Made to capture the aspects of a resto-mod, this model mimics the looks of a truck you might find parked in a junkyard or abandoned barn, while running on modern parts.

Check out the enhanced detail with its officially licensed Mickey Thompson wheels and tires. The RC4WD Mickey Thompson Classic Lock 1.9" Internal Beadlock Wheels are CNC machined and topped with Mickey Thompson Classic Lock Caps. The RC4WD Mickey Thompson 1.9" Baja Claw 4.19" Scale Tires are made of our super soft, super sticky X2 SS Compound and come standard with molded sidewall details. Adding to the rugged appeal, our RC4WD Push Bar comes mounted in the front and completely transforms the look of this RC Truck! This Rust Bucket Edition RTR is guaranteed to fulfill any RC enthusiast with a passion for scale realism. Do not hesitate! Own this one of a kind RC and enjoy its rough, retro style now!

Custom Rust Painted Chevy Blazer Body
K44 Ultimate Scale Cast Axles
R3 Scale Single Speed Transmission
Center Mounted Hammer Transfer Case
540 Crawler Brushed Motor 45T
Twister High Torque Metal Gear Digital Servo
Outcry III Waterproof ESC
RC4WD 6-Cell 30000mAh NiMH Battery Pack
Superlift Superide 80mm Scale Shock Absorbers
RC4WD Mickey Thompson 1.9" Baja Claw 4.19" Scale Tires
RC4WD Mickey Thompson Classic Lock 1.9" Internal Beadlock Wheels
RC4WD Marlin Crawler Side Plastic Sliders For Trail Finder 2
RC4WD Push Bar For RC4WD Chevy K5 Front Bumper
XR3 3-Channel 2.4Ghz Transmitter / Receiver Radio
RC4WD Universal NiMH Peak Battery Charger

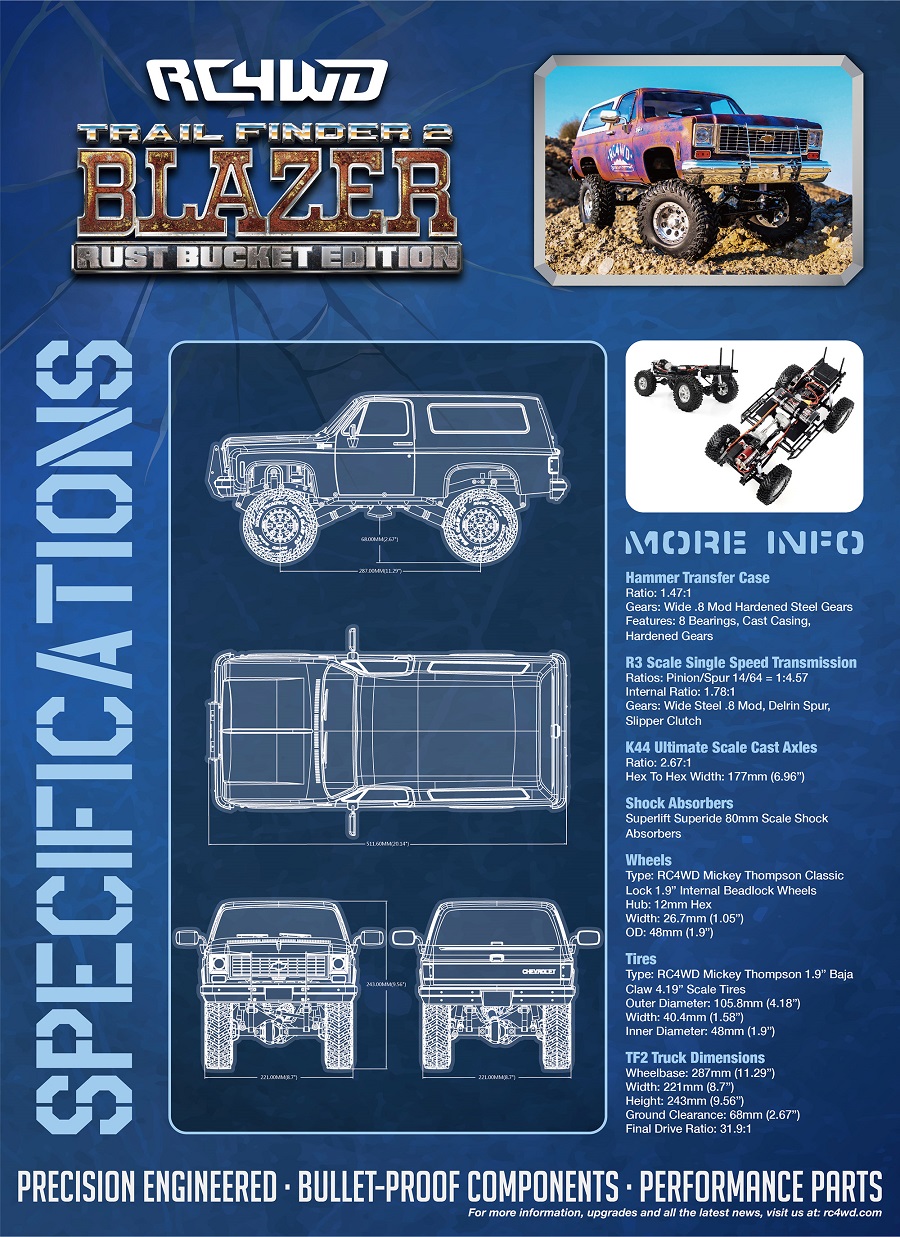

Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

K44 Ultimate Scale Cast Axles
Ratio: 2.67:1
Hex To Hex Width: 177mm (6.96")

Shock Absorbers
Superlift Superide 80mm Scale Shock Absorbers

Wheels
Type: RC4WD Mickey Thompson Classic Lock 1.9" Internal Beadlock Wheels
Hub: 12mm Hex
Width: 26.7mm (1.05")
OD: 48mm (1.9")

Tires
Type: RC4WD Mickey Thompson 1.9" Baja Claw 4.19" Scale Tires
Outer Diameter: 105.8mm (4.18")
Width: 40.4mm (1.58")
Inner Diameter: 48mm (1.9")

TF2 Truck Dimensions
Wheelbase: 287mm (11.29")
Width: 221mm (8.7")
Height: 243mm (9.56")
Ground Clearance: 68mm (2.67")
Final Drive Ratio: 31.9:1

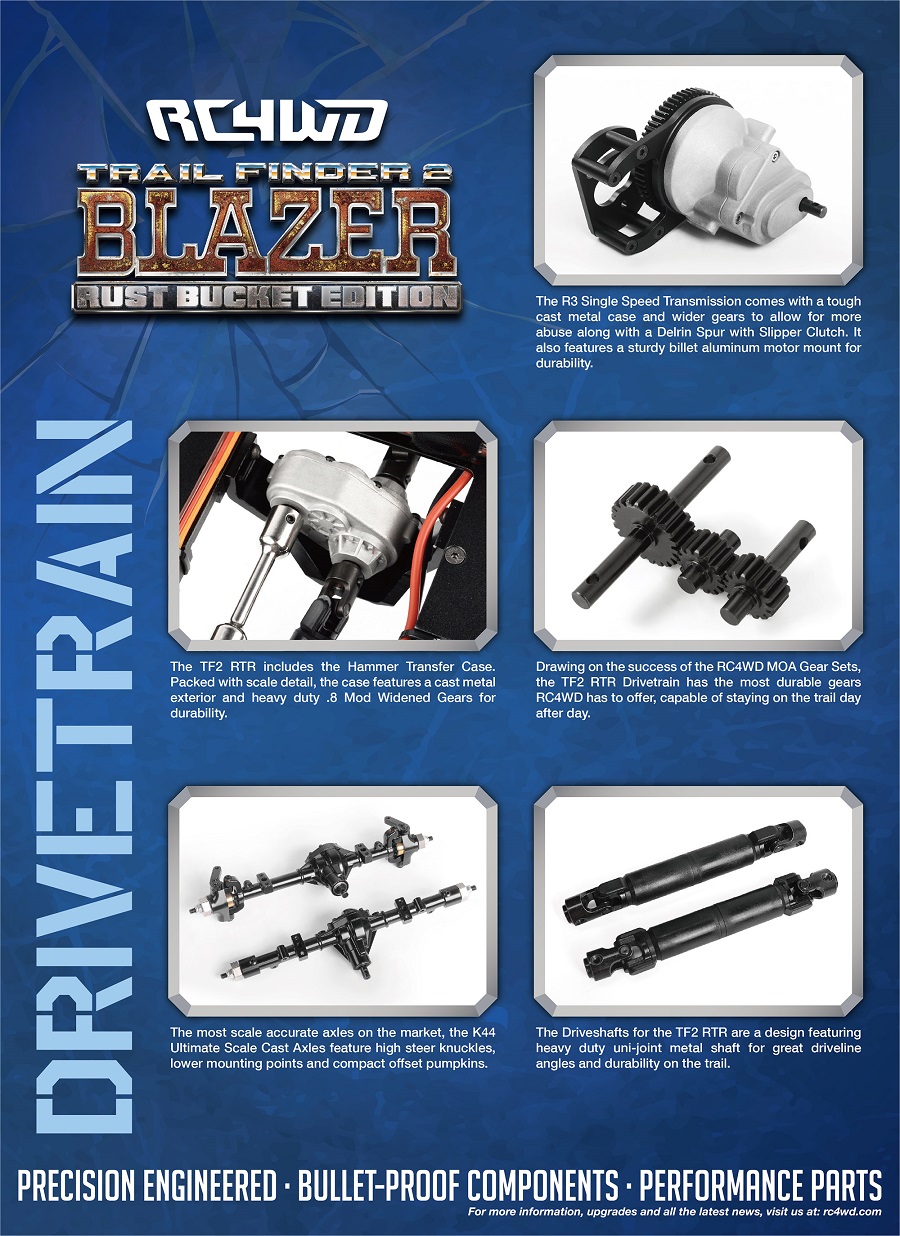

DRIVETRAIN
The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The TF2 RTR includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and heavy duty .8 Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the TF2 RTR Drivetrain has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

The most scale accurate axles on the market, the K44 Ultimate Scale Cast Axles feature high steer knuckles, lower mounting points and compact offset pumpkins.

The Driveshafts for the TF2 RTR are a design featuring heavy duty uni-joint metal shaft for great driveline angles and durability on the trail.

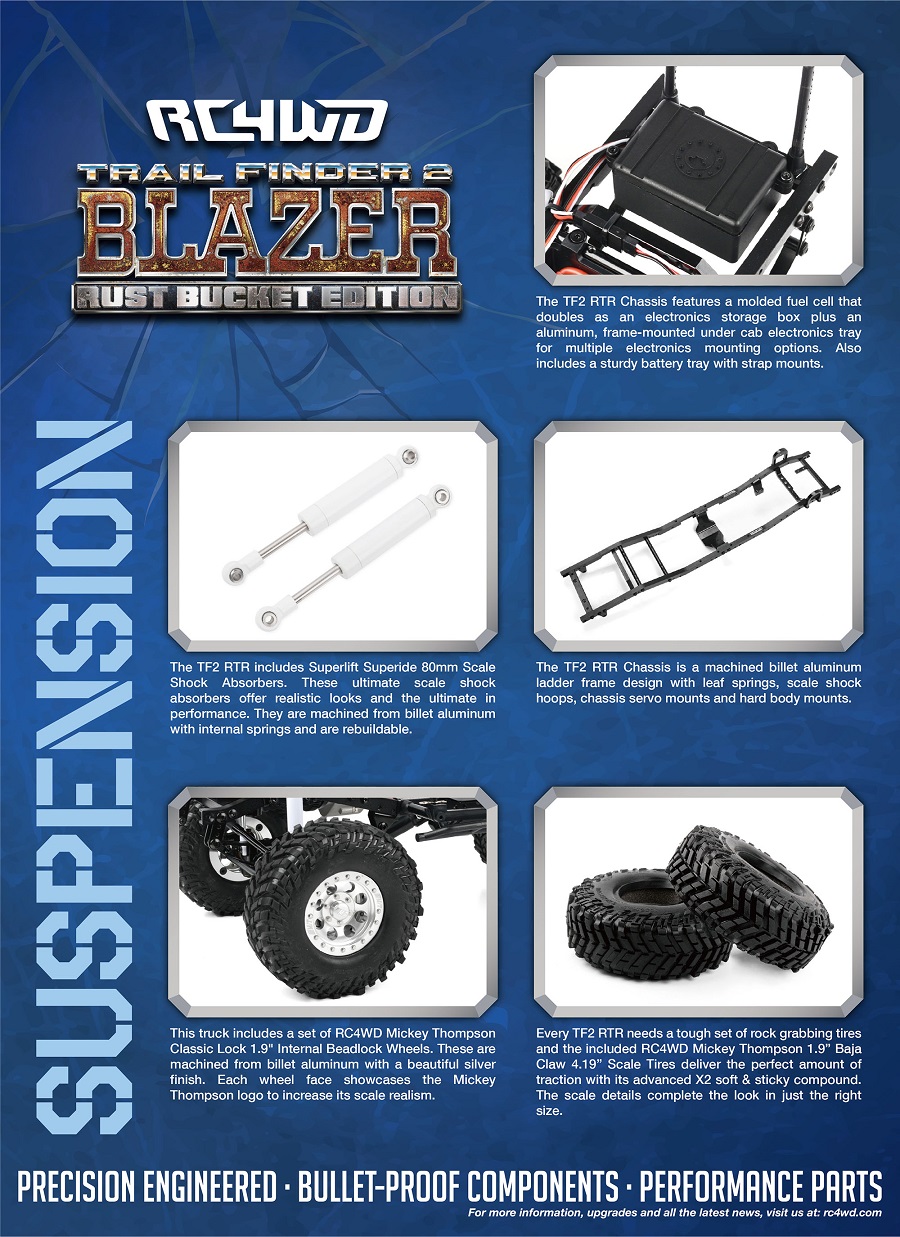

SUSPENSION
The TF2 RTR Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.

The TF2 RTR includes Superlift Superide 80mm Scale Shock Absorbers. These ultimate scale shock absorbers offer realistic looks and the ultimate in performance. They are machined from billet aluminum with internal springs and are rebuildable.

The TF2 RTR Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts.

This truck includes a set of RC4WD Mickey Thompson Classic Lock 1.9" Internal Beadlock Wheels. These are machined from billet aluminum with a beautiful silver finish. Each wheel face showcases the Mickey Thompson logo to increase its scale realism.

Every TF2 RTR needs a tough set of rock grabbing tires and the included RC4WD Mickey Thompson 1.9” Baja Claw 4.19” Scale Tires deliver the perfect amount of traction with its advanced X2 soft & sticky compound. The scale details complete the look in just the right size.

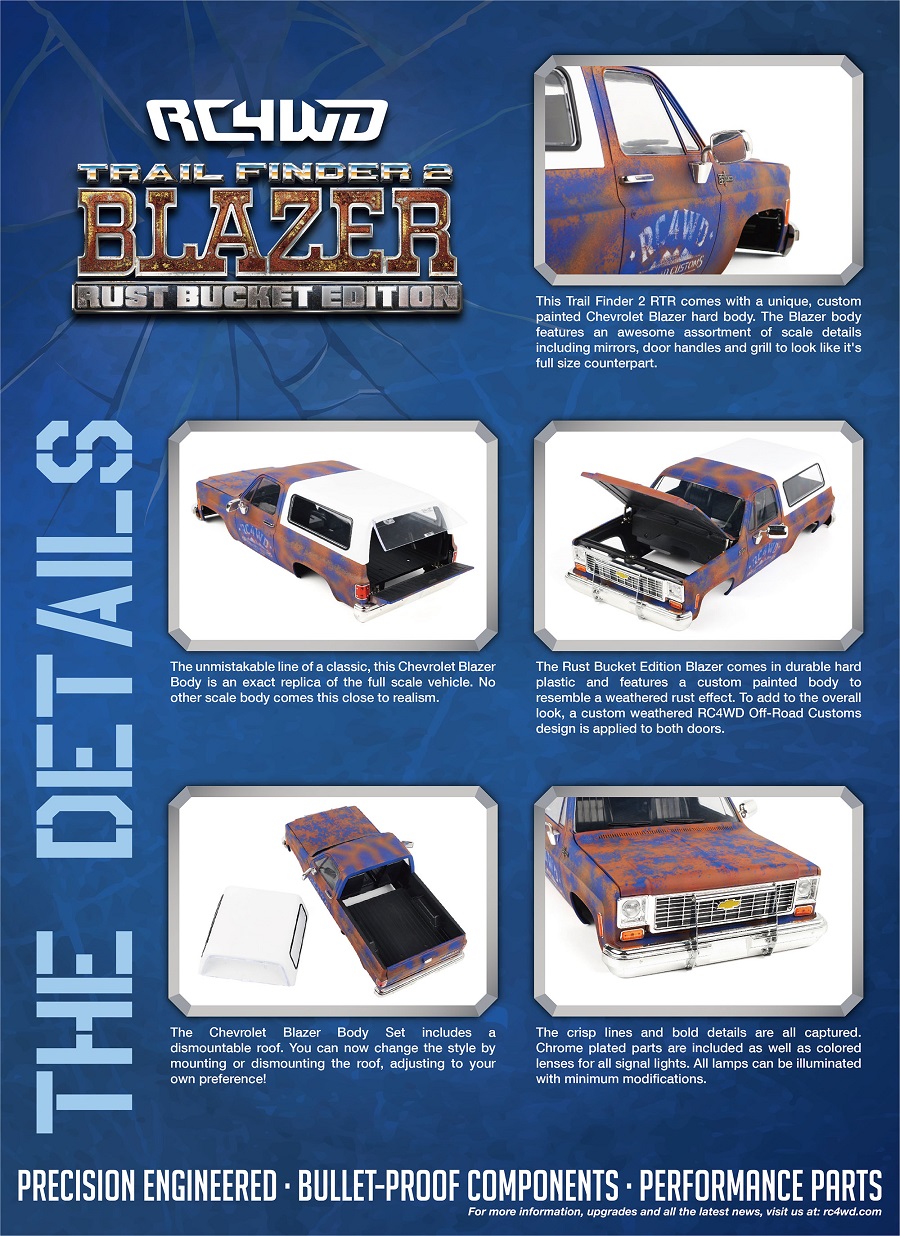

DETAILS
This Trail Finder 2 RTR comes with a unique, custom painted Chevrolet Blazer hard body. The Blazer body features an awesome assortment of scale details including mirrors, door handles and grill to look like it's full size counterpart.

The unmistakable line of a classic, this Chevrolet Blazer Body is an exact replica of the full scale vehicle. No other scale body comes this close to realism.

The Rust Bucket Edition Blazer comes in durable hard plastic and features a custom painted body to resemble a weathered rust effect. To add to the overall look, a custom weathered RC4WD Off-Road Customs design is applied to both doors.

The Chevrolet Blazer Body Set includes a dismountable roof. You can now change the style by mounting or dismounting the roof, adjusting to your own preference!

The crisp lines and bold details are all captured. Chrome plated parts are included as well as colored lenses for all signal lights. All lamps can be illuminated with minimum modifications.

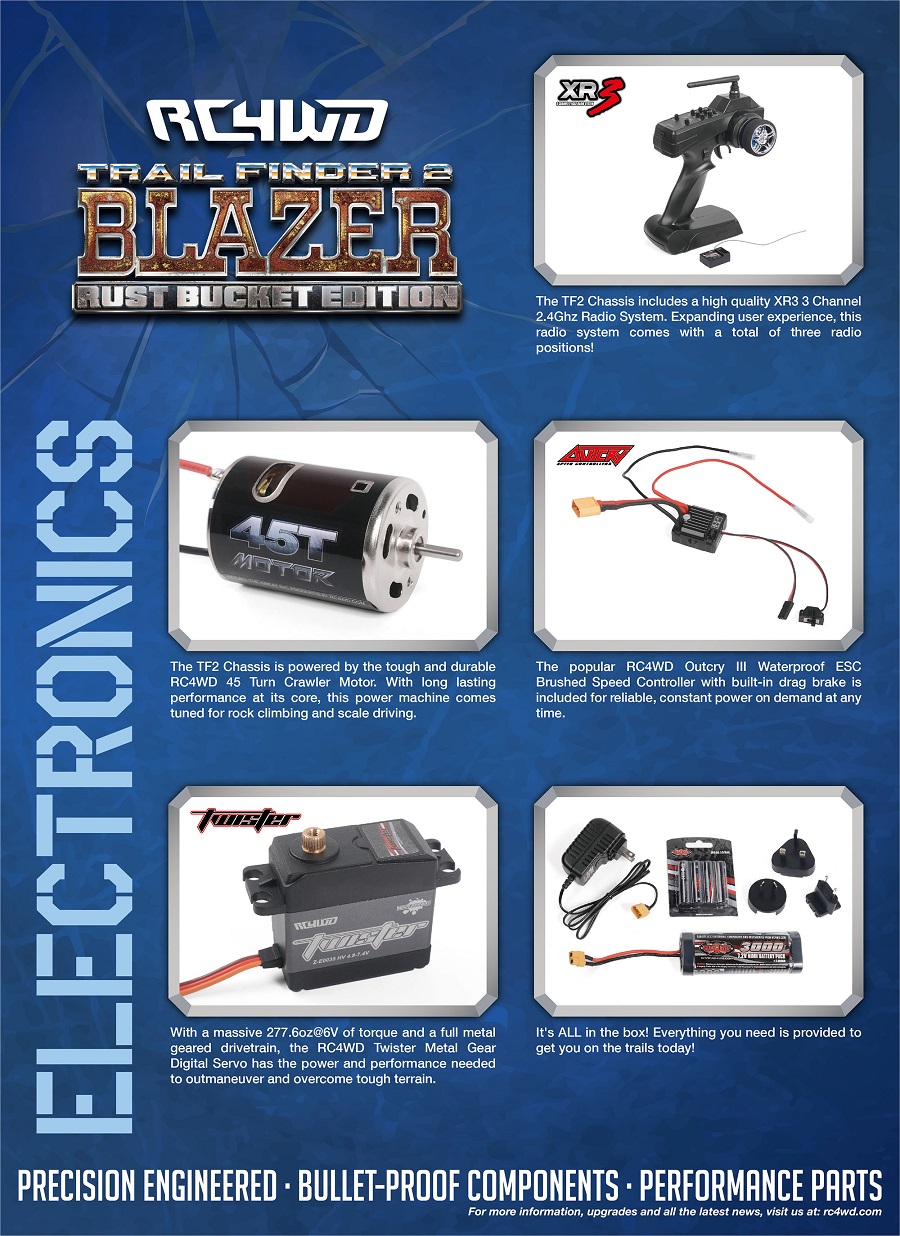

ELECTRONICS
The TF2 Chassis includes a high quality XR3 3 Channel 2.4Ghz Radio System. Expanding user experience, this radio system comes with a total of three radio positions!

The TF2 Chassis is powered by the tough and durable RC4WD 45 Turn Crawler Motor. With long lasting performance at its core, this power machine comes tuned for rock climbing and scale driving.

The popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller with built-in drag brake is included for reliable, constant power on demand at any time.

With a massive 277.6oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and performance needed to outmaneuver and overcome tough terrain.

It's ALL in the box! Everything you need is provided to get you on the trails today!

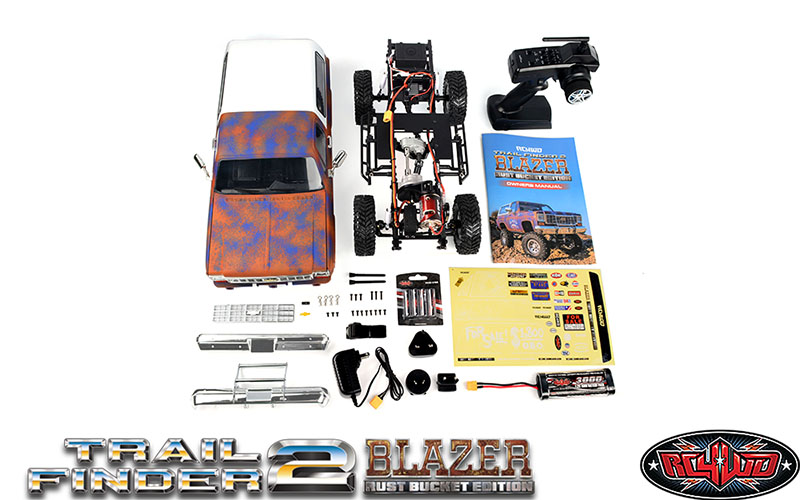

What's Included:
1x RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Rust Bucket Edition)

Replacements Parts:
R3 Scale Single Speed Transmission (Z-U0028)
Hammer Transfer Case (1.47/1) (Z-U0024)
K44 Ultimate Scale Cast Rear Axle (Z-A0096)
K44 Ultimate Scale Cast Front Axle (Z-A0101)
TF2 Long Drive Shaft Coupling for R3 Single Speed (Z-S0898)
K44 Cast Steering Link Set (Z-S1685)
Leaf Spring Shackles & Mounts Kit (Z-S0047)
RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)
Soft Steel Leaf Spring for Trail Finder 2 (Z-S0518)
RC4WD Plastic Punisher Shaft V2 (102mm-110mm / 4.02" - 4.33") 5mm Hole (Z-S2020)
RC4WD Mickey Thompson Classic Lock 1.9" Internal Beadlock Wheel (Z-W0007)
RC4WD Mickey Thompson 1.9" Baja Claw 4.19" Scale Tires (Z-T0060)
Fuel Cell Radio Box (Z-S0592)
Trail Finder 2 Plastic Body Posts (Z-B0029)
RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 (Z-S0596)
RC4WD Chevrolet Blazer Chrome Front Grille w/Optional Inserts (Z-B0124)
RC4WD Push Bar for RC4WD Chevy K5 Front Bumper (Z-X0036)
Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
540 Crawler Brushed Motor 45T (Z-E0004)
Outcry III Waterproof ESC (Z-E0113)
Twister High Torque Metal Gear Digital Servo (Z-E0035)
Twister Low Profile Metal Gear Digital Shift Servo (Z-E0117)
RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
RC4WD Universal NIMH Peak Battery Charger (Z-E0106)

Optional Parts:
Winch (Winch Options)
Yota Ultimate Scale Cast Axle (Front) (Z-A0058)
Yota Ultimate Scale Cast Straight Axle (Rear) (Z-A0061)
Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
RC4WD 1/10 Baja Designs S8 LED Light Bar (120mm) (Z-E0076)
RC4WD 1/10 Baja Designs Squadron Pro LED Lights (Z-E0066)
540 Crawler Brushed Motor 20T (Z-E0065)
540 Crawler Brushed Motor 27T (Z-E0067)
540 Crawler Brushed Motor 35T (Z-E0005)
540 Crawler Brushed Motor 55T (Z-E0003)
540 Crawler Brushed Motor 65T (Z-E0002)
540 Crawler Brushed Motor 80T (Z-E0001)
LED Light Set for Blazer Body Set (Z-E0084)
XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0006)
RC4WD XR3/XR4 2.4Ghz 4-Channel Receiver (Z-R0008)
Helical Gear Set for 1/10 Yota Axle (Z-G0059)
RC4WD V8 Engine Cover with Metal Intake Set for R3 Transmission (Z-S1749)
RC4WD Water Pump for V8 Scale Engine (Z-S1719)
80mm Ultimate Scale Shocks Internal Spring Assortment (Z-S1347)
Internal Springs for ARB and Superlift 80mm Shocks (Z-S1179)
Punisher Shaft II (90mm - 120mm / 3.54" - 4.72") 5mm F-350 Hi-Lift (Z-S0522)
Scale Steel Punisher Shaft V3 (90.5mm - 110.5mm / 3.56" - 4.35") 5mm Hole (Z-S0826)
RC4WD 1/10 Hi-Lift Jack (Z-S1526)
Front Inner Fender Set for Chevy Blazer (Z-S1729)
Chubby 6 TON Scale Jack Stands (Z-S0588)
Chubby Mini 3 TON Scale Jack Stands (Z-S0731)
RC4WD 80mm Old Man Emu Nitrocharger Sport Shocks by ARB (Z-D0036)
The Ultimate Scale Shocks 80mm (Silver) (Z-D0005)
RC4WD Chevrolet Blazer Decal Sheet Set for Chevy Blazer Body (Z-B0123)
Mega Truck Universal Shaft "Ver 2" (92mm - 130mm / 3.62" - 5.12") (VVV-S0054)
Roll Bar Rack w/Spare Mount for RC4WD Chevy Blazer Body (Red) (VVV-C0356)
Roof Rack, Rollbar, Light Bar Combo for RC4WD Chevy Blazer Body (Black) (VVV-C0357)
Roll Bar Rack w/Spare Mount for RC4WD Chevy Blazer Body (Black) (VVV-C0355)
Roll Bar Rack for RC4WD Chevy Blazer Body (Black) (VVV-C0353)
Dirt Grabber 1.9" All Terrain Tires (Z-T0005)
Breaker 1.55" Beadlock Wheels (Z-W0273)
TRunner Classic 1.55'' Beadlock Wheels (Z-W0121)
Black Mesh 1.55" Beadlock Wheels (Z-W0103)
RC4WD Raceline Combat 1.55" Beadlock Wheels (Z-W0292)
Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Black) (Z-W0281)
Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (White) (Z-W0284)
Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Chrome) (Z-W0285)
Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Clear) (Z-W0286)
Stocker 1.55" Internal Beadlock Wheels (Z-W0276)
Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0288)
Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (Clear) (Z-W0289)
OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Plain) (Z-W0308)
OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0309)
OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Black) (Z-W0310)
Six-Spoke 1.55" Internal Beadlock Wheels (Black) (VVV-C0806)
Six-Spoke 1.55" Single Internal Beadlock Wheel (Black) (VVV-C0807)
Six-Spoke 1.55" Internal Beadlock Wheels (Gold) (VVV-C0808)
Six-Spoke 1.55" Single Internal Beadlock Wheel (Gold) (VVV-C0809)
RC4WD Ballistic Off Road Morax 1.7" Beadlock Wheels (Z-W0118)
Truescale Series 1.7" Beadlock Wheels (Z-W0265)
RC4WD Benchmark 1.7" Beadlock Wheels (Z-W0266)
RC4WD Milestar Patagonia A/T 1.7" Tires (Z-T0181)
RC4WD Dirty Life RoadKill 1.7" Beadlock Wheels (Silver) (Z-W0298)
RC4WD Dirty Life RoadKill 1.7" Beadlock Wheels (Black) (Z-W0299)
Stamped Steel 1.7" Beadlock Wagon Wheels (Clear) (Z-W0272)
Stamped Steel 1.7" Beadlock Wagon Wheels (Chrome) (Z-W0271)
Stamped Steel 1.7" Beadlock Wagon Wheels (White) (Z-W0269)
RC4WD Ballistic Off Road Rage 1.9'' Beadlock Wheels (Z-W0261)
JK 1.9" Scale Beadlock Wheels (Z-W0151)
RC4WD 1911 1.9'' Beadlock Wheels (Z-W0274)
RC4WD Enforcer 1.9" Beadlock Wheels (Z-W0122)
Tango Down 1.9" Internal Beadlock Wheels (Black) (Z-W0038)
RC4WD Yota Narrow Offset 1.9" Beadlock Wheels (Z-W0283)
RC4WD Fuel Zephyr Beadlock Wheels 1.9" (Z-W0294)
Lotus 1.9" Aluminum Wheels (VVV-C0615)
Lotus 1.9" Aluminum Wheels (Wide Rear) (VVV-C0616)
Rover Classic 1.9" Beadlock Wheels (VVV-C0695)
Rover Vogue 1.9" Beadlock Wheels (VVV-C0696)
Tango Down 1.9" Internal Beadlock Wheels (Gun Metal) (Z-W0297)
RC4WD Black Rhino Armory Internal Beadlock Deep Dish 1.9" Wheels (Z-W0293)
Classic 10-Hole Chrome 1.9" Beadlock Wheels (Z-W0296)
RC4WD Interco Narrow TSL SS 1.55" Scale Tires (Z-T0182)
RC4WD Level 8 Bully Pro 6 1.9" Beadlock Wheels (Z-W0300)
RC4WD ION Style 71 1.9" Beadlock Wheels (Z-W0303)
RC4WD Dirty Life MB 1.9" Beadlock Wheels (Z-W0306)
Dome Spoked 1.9" Classic Beadlock Wheels (VVV-C0810)
Vehement 1.9" Internal Beadlock Wheels (VVV-C0811)
OEM Stamped Steel 1.55" Beadlock Wheels (Plain) (Z-W0258)
OEM Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0260)
OEM Stamped Steel 1.55" Beadlock Wheels (Black) (Z-W0262)
OEM Stamped Steel 1.55" Beadlock Wheels (Chrome) (Z-W0264)
RC4WD Walker Evans 501 Legend 1.55" Beadlock Wheels (Z-W0319)
RC4WD Rogue 1.55" Beadlock Wheels (Z-W0317)
Compass M/T 1.55" Scale Tires (Z-T0186)
RC4WD Walker Evans 501 Legend 2.2" Beadlock Wheels (Z-W0322)
RC4WD Walker Evans 501 Legend 1.7" Beadlock Wheels (Z-W0320)
RC4WD Raceline Monster Deep Dish 1.7" Beadlock Wheels (Z-W0304)
RC4WD Rogue 1.7" Beadlock Wheels (Z-W0315)
RC4WD BFGoodrich Krawler T/A KX 1.7" Scale Tires (Z-T0189)
RC4WD Michelin LTX A-T2 1.7" Tires (Z-T0194)
Stamped Steel 1.7" 10-Oval Hole Wheels (White) (Z-W0311)
Stamped Steel 1.7" 10-Oval Hole Wheels (Plain) (Z-W0312)
Stamped Steel 1.7" 10-Oval Hole Wheels (Black) (Z-W0313)
Stamped Steel 1.7" Beadlock Wagon Wheels (Black) (Z-W0270)
RC4WD BFGoodrich Mud Terrain T/A KM3 1.7" Tires (Z-T0191)
RC4WD Rogue 1.9" Beadlock Wheels (Z-W0314)
RC4WD TUFF T21 1.9" Internal Beadlock Wheels (Z-W0307)
RC4WD Cali Off-Road Distorted 1.9" Beadlock Wheels (Z-W0295)
RC4WD Ridler 645 1.9" Internal Beadlock Wheels (Z-W0305)
RC4WD Walker Evans 501 Legend 1.9" Beadlock Wheels (Z-W0318)
Rally 1.9" Beadlock Wheels (Gold) (Z-W0324)
Rock Tamer 1.9" Beadlock Wheels (Z-W0321)
RC4WD Enforcer 1.9" Beadlock Wheels (Red) (Z-W0323)
OEM XJ 1.9" Beadlock Wheels (Chrome) (VVV-C0849)
OEM XJ 1.9" Beadlock Wheels (Gunmetal) (VVV-C0850)
Breaker 1.9" Beadlock Wheels (Gold) (Z-W0325)
1.9" 5 Lug Steel Wheels w/Beauty Ring (Silver) (Z-W0327)
RC4WD BFGoodrich Mud-Terrain T/A KM2 1.9" Scale Tires (Z-T0187)
RC4WD BFGoodrich Mud Terrain T/A KM2 1.55" Scale Tires (Z-T0190)
RC4WD BFGoodrich Mud Terrain T/A KM3 1.9" Tires (Z-T0192)
RC4WD Michelin Agilis C-Metric 1.9" Tires (Z-T0193)
RC4WD Falken Wildpeak A/T Trail 1.9" Scale Tires (Z-T0195)
RC4WD Mickey Thompson Baja Pro X 4.19 1.7 Scale Tires (Z-T0196)
RC4WD BFGoodrich All-Terrain K02 1.9" Scale Tires (Z-T0188)

Instruction Manual:
Click here to download

Press Information:
Click here to download

Items of Interest: (not required for completion)
Grease and Lubrication (Z-S1199) (Z-S1197)

Notes:
While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws, otherwise you may strip the thread.

Recommended Accessories
Hitec RCD RDX1 Mini Single Channel AC 65W Charger
RPP Price: $46.99

Add
Hitec RCD RDX1 Mini Single Channel AC 65W Charger

Share your knowledge of this product with other customers... Be the first to write a review

Browse for more products in the same category as this item:

Cars & Trucks > Rock Crawlers > Scale & Trail Kits / RTR's
Cars & Trucks > Rock Crawlers
Cars & Trucks

Our Friends Say...
