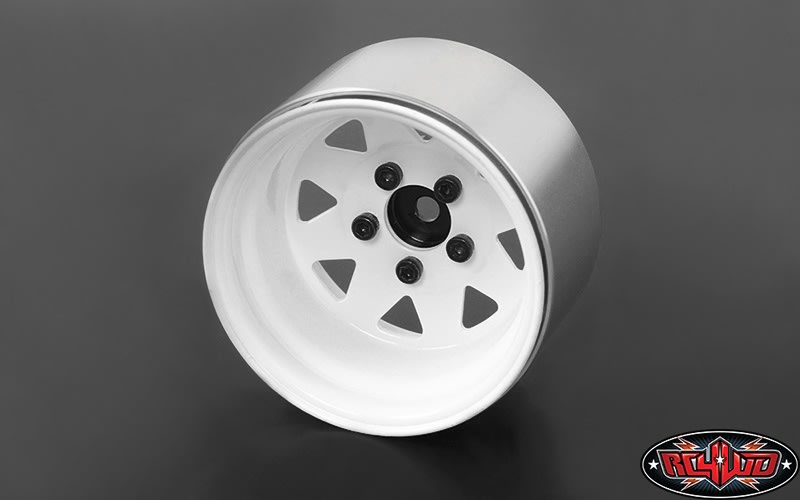

RC4WD 5 Lug Deep Dish Wagon 1.9" Steel Stamped Beadlock Wheels (White) (4)

RC4WD 5 Lug Deep Dish Wagon 1.9" Steel Stamped Beadlock Wheels (White) (4)



More Photos:
RPP Price: $56.99

STOCK STATUS:
 In Stock!


Part Number: RC4Z-W0242
Qty:

Description

Specifications:
Stamped Steel Wheels
CNC Machined Parts
Amazing Detail
Fits Standard 12mm Hex
Wheel Size: 1.9''
OD: 1.9in / 48.5mm
Width: 1.26in / 32.1mm
Center Hole OD: 0.16in / 4.0mm
Negative Offset: 0.12in / 3.0mm
Each Weight: 2.75oz / 78.0g

What's Included:
4x 5 Lug Deep Dish Wagon 1.9" Steel Stamped Beadlock Wheels (White)
2x M2.5 x 14mm SHCS (Black) (Z-S1213)

Optional Parts:
1.9"/2.2" 5 Lug Steel Wheel Hex Hub +6 Offset (Z-S1276)
1.9"/2.2" 5 Lug Steel Wheel Hex Hub +9 Offset (Z-S1278)
1.9" 5 Lug Steel Wheel Hex Hub (Z-S0734)
RC4WD 12mm Axle Wheel Hexes (Z-S0239)
RC4WD 12mm Axle Wheel Hexes (2 way) (Z-S0238)
Bully 2 12mm Front Axle Hex (Z-S0449)

Replacement Parts:
1.9"/2.2" 5 Lug Steel Wheel Hex Hub +3 Offset (Z-S1273)

Replacement Hardware:
20x M2.5 x 10mm SHCS (Black) (Z-S1290)

Notes:
Due to many different methods to design Tires and Wheels, we have no control over other manufacturers products. So we can only tell you that RC4WD Tires and Wheels work together. In some cases our Wheels and Tires will work with other brand Wheels and Tires, but we can not guarantee the outcome.

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 3 Write a review.

  0 of 0 people found the following review helpful:

5 of 5 November 12, 2019
Reviewer: Mike McNamara from Nampa, ID United States
Love these old school deep dish wagon wheels. They  look great on my Redcat Gen 8. Pittbull Rock Beasts mounted up nice. Took a little time but they look awesome.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 YES you already know the Service is great... June 13, 2019
Reviewer: Carmine Allocca from Tucson, AZ United States
RPP Rocks!
That's NOT a Review!
These RC4WD Wheels are great for us Old Farts who remember our 15X10 White Steelies on our old Beaters.
They're great, I HIGHLY recommend them!

INSTALL TIP: Some people have trouble with the tiny Screws holding Wheels together...
Take an old Dogbone Cup, a 12mm Hex, and a 4mm Wheel Nut.
Set up the Wheel and Tire, be SURE to line up the holes. Especially the Lugnut holes....
Put the Dogbone Cup with 12mm Hex through the inside of the Wheel.
Take the 4mm Nut and start to thread it on.
Tighten the Nut down, watch the Beads on either side.

Don't tighten all the way. Just until when you insert the Wheel Screws from inside the Hub, threads stick through the front of the Wheel, so the Lugnuts will start.
Get them all started, snug them in the typical "Star Pattern", still checking the Beads.
Remove the Dogbone Cup. You're DONE!
This works for ALL 3 piece RC Steel Wheels that bolt to a 12mm Hex Hub - 1.9, 1.55, 2.2. ALL Manufacturers.

Was this review helpful to you?

  0 of 1 people found the following review helpful:

5 of 5 October 15, 2018
Reviewer: Dayn Mizuno from Hilo, HI United States
Excellent service, reasonably priced, quick shipping

Was this review helpful to you?
