Specifications:CNC Machined
Billet Aluminum
Silver Anodized Finish
Fits Standard 7mm Hex
Wheel Size: 1.0"
Fit 1.0" Size Tires
OD: 1.09in / 27.5mm
Width: 0.60in / 15.4mm
Center Hole OD: 0.1in / 2.5mm
Negative Offset: 0.02in / 0.55mm
Each Wheel Weighs: 0.51oz / 14.4g
![]()
Shown installed with RC4WD Goodyear Wrangler MT/R 1.0" Micro Scale Tires (Z-T0161) for example (Not Included)
![]()
Shown installed on RC4WD 1/18 Gelande II RTR w/Black Rock Body Set (Z-RTR0037) with RC4WD Goodyear Wrangler MT/R 1.0" Micro Scale Tires (Z-T0161) for example (Not Included)
What's Included:

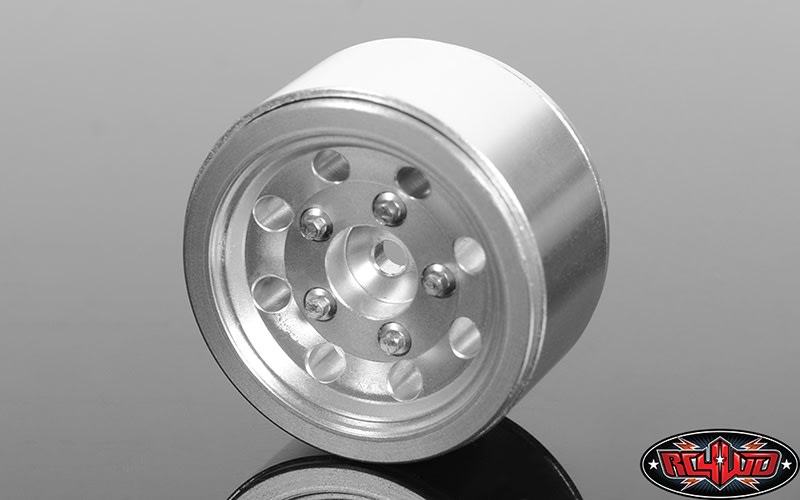

4x RC4WD Classic 8-Hole 1.0" Beadlock Wheels
1x Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts (1.5 mm Hex)
Optional Tools:
RC4WD 4pc Precision Metric Hex/Nut Driver Set (Z-F0030)
Replacement Hardware:
Steel Flat Head Cap Screw M2 X 6mm (10) (Z-S1518)
RC4WD Miniature Scale Hex Bolts (M1.6 x 2mm) (Silver) (Z-S1809)
Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts (1.5 mm Hex) (Z-S1328)
Notes:
Fits RC4WD 1/18 Gelande II RTR w/D90 Body Set (Blue) (Z-RTR0039)
Use in combination with RC4WD 7mm Wheel Hex Conversion for Axial SCX24 1/24 (Z-S2169) to mount to Axial SCX24 1/24 series trucks.
Due to many different methods to design tires and wheels, we have no control over other manufacturers products, so we can only tell you that RC4WD tires and wheels work together. In some cases, our wheels and tires will work with other brand wheels and tires, but we can not guarantee the outcome.
