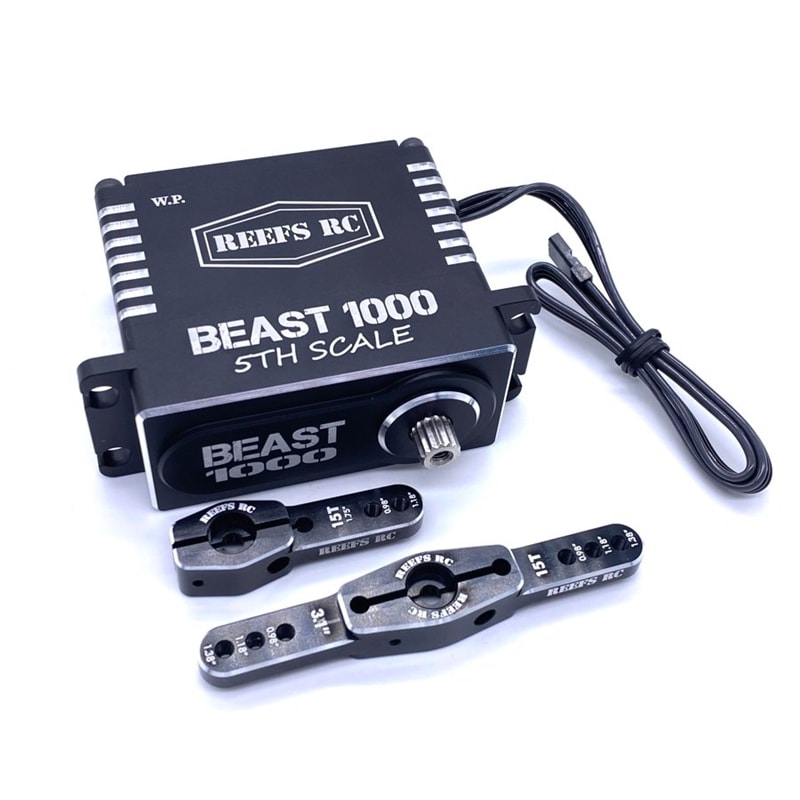

High Torque High Speed Brushless Servo
Includes: REEFS SINGLE HORN / REEFS DOUBLE HORN
Submarine Waterproof: 7 Point Seals
Features:
Magnetic Angle Sensor
Pulse Width Modulation Control
Voltage 4.8V - 8.4V
Mechanical Angle: No Limit
Internal: Steel Gears / All CNC Aluminum Casing
Bearing Type: 5 Ball Bearings /
Wires: 22AWG
Weight: 10oz / 285g
Dimensions L x W x H: 65.8mm (2.59") x 30.0mm (1.18") x 58.9mm (2.32")
Torque: 800oz @ 6v/ 900oz @7.4v/ 1080oz @8.4v
Speed: .11sec @6v/.095sec @7.4v/.08sec @8.4v
Spline: 15T / Dead Band Width: 2uSec
BEC Not Req. Recommended for max performance
Hardware Included:
(1) Servo Horn Screw 3.5x8mm
(3) 3x16mm Cap Head Screws for end of horns.
(4) 2mm Horn Clamping Cap Head Screws
Load Current:
8800 mA @ 4.8V
9800 mA @ 6.0V
10500 mA @ 7.4V
11000 mA @ 8.4V
Unload Current:
550 mA @ 4.8V
600 mA @ 6.0V
700 mA @ 7.4V
820 mA @ 8.4V
