REEFS RC Raw 800LP High Torque HV Waterproof Brushless Programmable Servo - Silver

REEFS RC Raw 800LP High Torque HV Waterproof Brushless Programmable Servo - Silver



More Photos:


RPP Price: $159.99

Note: Coupon discounts not available

STOCK STATUS:
 In Stock!


Part Number: REF-S147
Qty:

Description

Reef's RC Raw 800 LP Low Profile High Torque HV Waterproof Brushless Programmable Servo - Silver

High Torque High Speed
4 POLE - Brushless

Specifications:
SUBMARINE WATERPROOF: 7 Point Seals
Magnetic Angle Sensor
Voltage 4.8V - 8.4V
REEFS LINK required for Programming (Optional)
Internal: Steel Gears
CNC Aluminum Casing
Bearing Type: 2 Ball Bearings
Weight: 2.3oz / 66gm

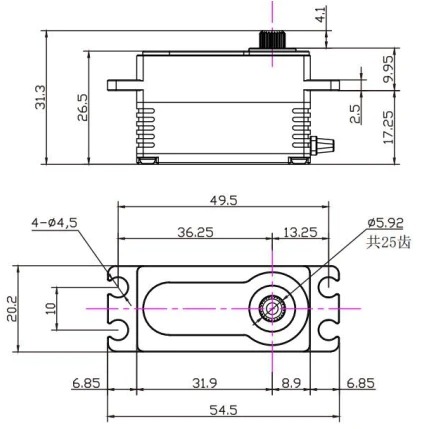

Dimension LWH: 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
Torque: 635oz @ 6v/ 715oz @7.4v/ 800oz @8.4v
Speed: .12sec @6v/.10sec @7.4v/.09sec @8.4v
Spline: 25T / Dead Band Width: 2¦Ìs
BEC Not Req. Recommended for max performance
