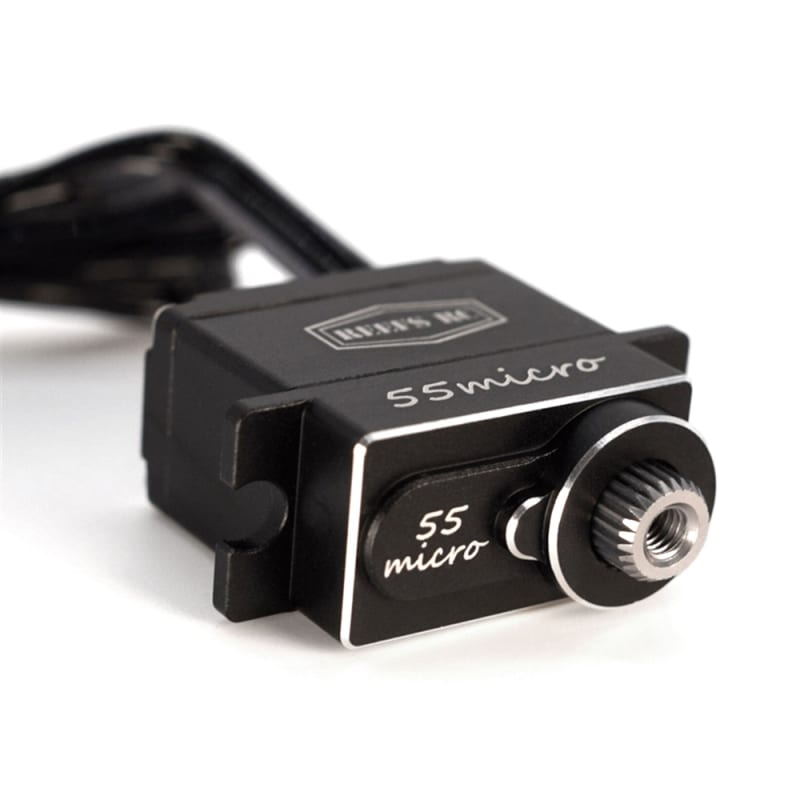

With up to 55oz of torque and .08s response time, this digital sub-micro servo is small and mighty.
The 55Micro is a Direct-fit upgrade for the TRAXXAS® TRX-4™ and TRAXXAS® TRX-4M™ and offers greater performance and reliability anywhere a TRAXXAS® 2065 sub-micro servo might be utilized. Offering a digital core with pulse width modulation control, so your servo will operate in a highly efficient and consistent cycle. If being waterproof and Fully programmable isn't enough, now you can run higher voltage (up to 8.4v), so in most cases there is no need to bypass this tiny servo in your system.
Fits:
Direct-Fit Replacement Upgrade for TRAXXAS® TRX-4™ TRAXXAS® TRX-4M or #2065 servo
Any Sub-Micro application that demands high performance and reliability
Utilizes Standard 25T servo horn such as REEFS V2 HD Shield Servo Horn
Specifications:
Waterproof
Fully Programmable
High Efficiency w/ Pulse Width Modulation
Steel Gears
CNC Aluminum Casing
2 Ball Bearings
BEC Not Required
Dimension: (LWH)
.90 x .50 x .86 in
22.9 x 12.8 x 22 mm
Torque:
41 oz @ 6.0v
48 oz @ 7.4v
55 oz @ 8.4v
Speed:
.11 sec @ 6.0v
.09 sec @ 7.4v
.08 sec @ 8.4v
Spline: 25T STANDARD
Dead Band Width: 3μs
Travel: 180
Angle: No Limit
Voltage: 4.8v-8.4v
Weight: .67oz/19g
Operating Temperature Range: -59°F to 159°F / -15°C to +70°C
For programming, the USB Link is required.
