ScalerFab SCX10 III Jeep Wrangler JLU / Gladiator Winch Front Bumper with Stinger & Shackle Mounts

*This bumper is made for a bumper-mounted winch and includes pre-drilled holes with the RC4WD Warn Winch pattern.

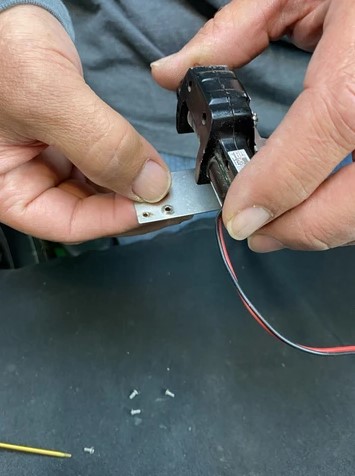

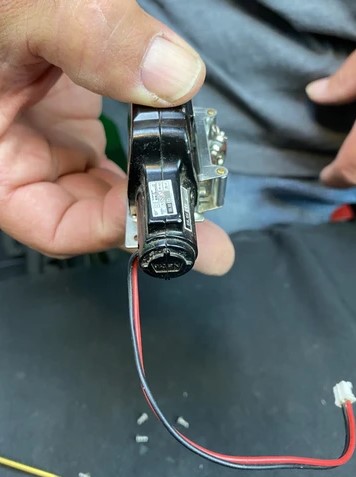

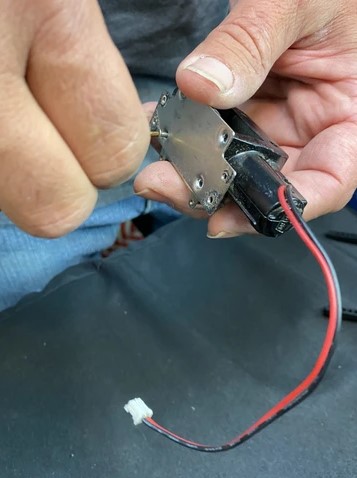

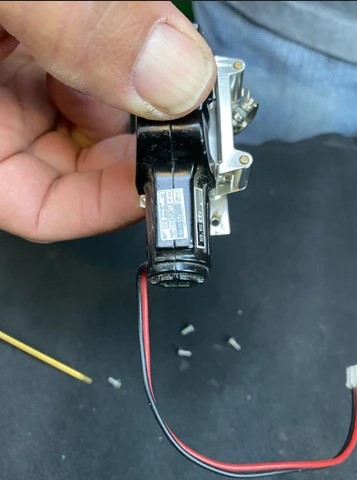

TO MOUNT WINCH: You will need to flip the winch mounting plate in order to install on bumper.




The ScalerFab SCX10 III bumpers are designed to work with the stock Axial body post mounting system. Bumpers will not mount with any after-market crossmembers or anything that would interfere with the end of the fram

Specifications:
115mm wide
Includes Pre-drilled mounting holes for winch (RC4WD WARN 9.5cti and 8274 Winch, 3Racing Winch, and SSD Ox Power Winch mounting pattern)
Mounts using existing holes in frame - does not mount like stock plastic bumper(s)
Steel construction - Hand Made/Welded.
No fore/aft adjustment

Mounting Instructions:

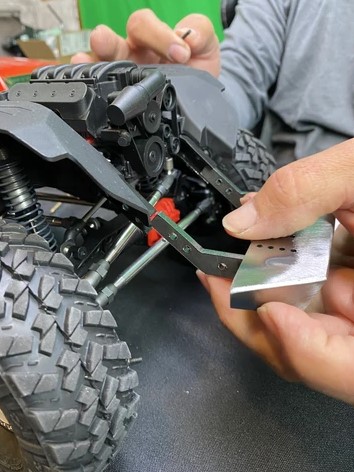

1. Bumper is made to slide inside the C-channel of the frame rails.

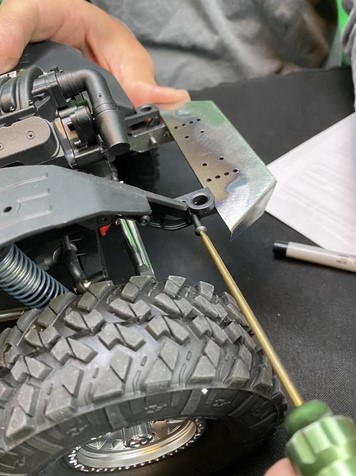

2. Using included screws, mount by matching holes in the body post mount with holes in the brackets and frame rails, as shown below. *Use included washer between frame rails and body post mount as a spacer.

3. Back screws with a washer and nut.
