Traxxas UDR LED Light Set Complete Desert Racer (Headlights Tail lights Roof lights High-voltage power amplifier)

Traxxas UDR LED Light Set Complete Desert Racer (Headlights Tail lights Roof lights High-voltage power amplifier)



More Photos:


RPP Price: $149.95
Note: Coupon discounts not allowed
by manufacturer


STOCK STATUS:
 In Stock!

Availability:: Ships to USA ONLY
Part Number: TRA8485
Qty:

Description

Pro-Scale Realism
Flood the desert with brilliant white light with the new High Intensity LED Off-Road Light Kit for the Traxxas Unlimited Desert Racer.

Traxxas innovation delivers features, performance, and detailed scale looks not found on any other lighting system. The included Traxxas High Voltage Amplifier packs the muscle to efficiently power the 204 individual LEDs in the kit while minimizing losses from excessive current and heat. The tightly regulated output provides stable lighting performance, without flickering or dimming as the battery voltage changes. In another Traxxas first, the smart brake lights work when brakes are applied in both forward and reverse directions. This eliminates the common and annoying problem with generic aftermarket systems that turn on the brake lights while reversing.

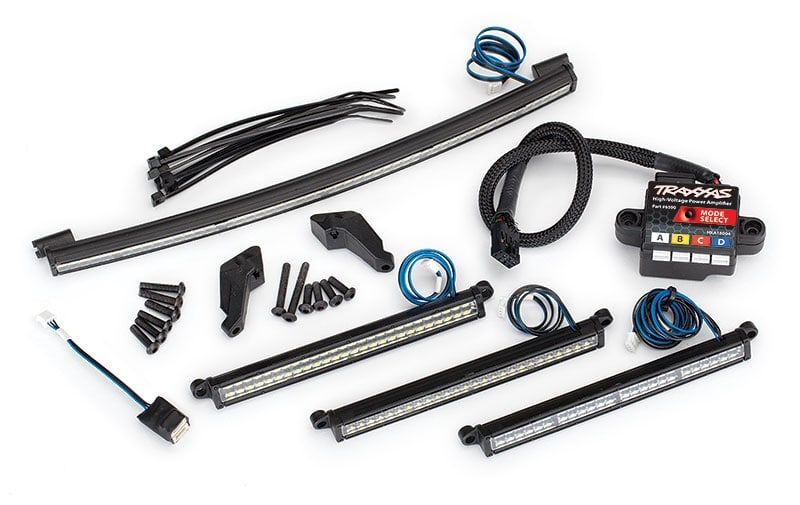

DESERT RACER LED LIGHT KIT INCLUDES:

Dual straight LED bumper-mounted LED light bars (52 LEDs each)
Curved roof light bar (52 LEDs)
Multifunction red and amber brake light/class light bar (24 red and 24 amber LEDs)
High-voltage 8-channel power amplifier for intense, brilliant LED lighting
Regulated output for stable lighting performance (no flickering or dimming as the battery voltage changes)

Wiring is simple: Plug the main connector from the power amplifier into the power port on the Traxxas VXL-6s Electronic Speed Control, and then plug the individual lighting modules into the power amplifier. Switch between three manual lighting modes on the power amplifier (such as high beam and low beam), or use the Traxxas Link app and Wireless Module (#6511*) to control individual lights remotely and create custom lighting configurations. Of course, since itís from Traxxas, this powerful, feature-rich system is rugged and fully waterproof for all of your exciting RC adventures.
The power amplifier recognizes the difference between braking
and reversing to provide truly functional brake lights.


High-Voltage Power

Rather than draw valuable power away from the BEC, the power amplifier uses the Power Port on the VXL-6s ESC to tap power directly from the batteries. The power amplifier transforms and regulates battery current to for reliable high-power performance.

Technology
Three different lighting modes on the amplifier let you control which lights illuminate. Use the Traxxas Link App* to further customize the lighting modes to your specifications or turn the lights on and off directly in the app. The kit includes all mounting hardware to make installation a breeze. The LED Light Bar Kit comes as a complete set or as individual components allowing Desert Racer owners to select the exact setup to meet their needs.

QUICK FEATURES ON DESERT RACER LED LIGHT KIT
A Traxxas first! Fully functioning brake lights that workin both forward and reverse direction
Fully waterproof
Three default lighting modes controlled from the power amplifier
Low and high beam brightness settings
Easy to install with simplified, concealed, color-coded wiring
Expandable
Firmware updatable through the app
App-controlled lighting functions*
Turn lights on/off remotely
Build a custom dashboard
Customize lighting configurations and actions
Add additional lighting components


LED Configuration with Traxxas Link App
