The F10 Plastic straights axles benefit from Vanquish Product’s years of design experience in making the industry’s best aluminum axles. The plastic molded F10 straight axles feature an ultra rigid design with an integrated truss that ties both ends of the axle together, reinforced panhard mount and integrated oversized axle c's for added strength and reliability.

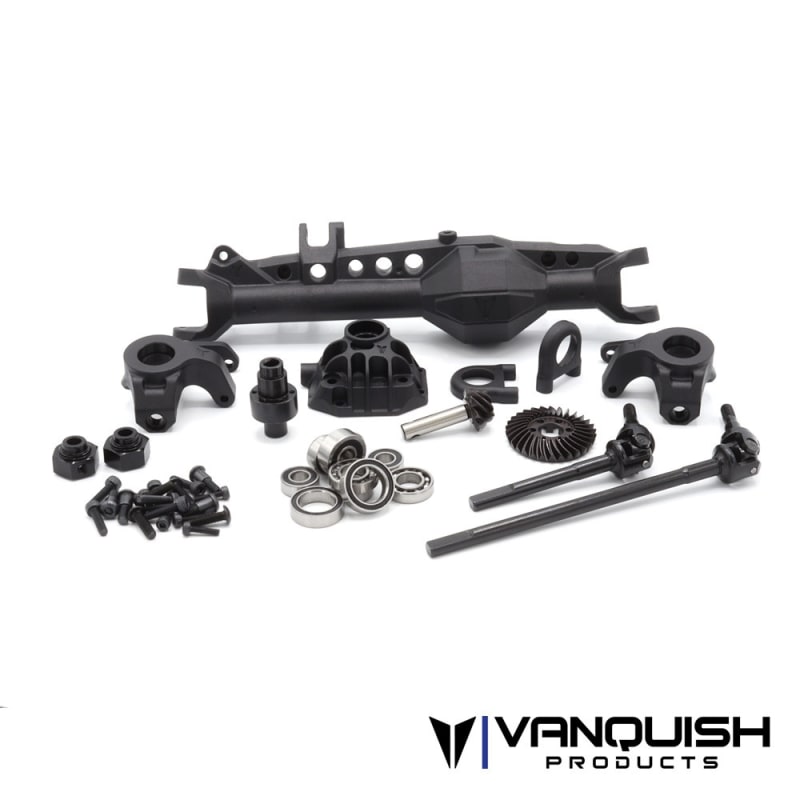

F10 Front Straight Axle Set:
Molded Plastic Axle housing
Universal Style Axle Shafts
49 Degrees of Steering
High Caster reinforced C-Hub
High-Pinion Hypoid Machined Axle Gears 30/8 (VPS08330)
6-Bolt Ring Gear and Spool
One-Piece Molded Bearing Retainers
Adjustable Lower Shock Mounting Position (S8E Offset Pivot Ball IRC00509)
Chromoly universal shafts
Scale removable third member
Note:
Optional lower ratio ring and pinion (8/33) available VPS08331
Compatible with all Vanquish SLW and Incision hubs.
For use with Phoenix, Ultra, Pro, and SCX10II Bent steering tie rod.
Does not include link mounting hardware
Incision .280" width pivot ball compatible
For use with IRC00509 S8E lower shock mount offset pivot ball at shock mount locations
Recommended for use with the following:
VPS10130 VS4-10 Chassis Kit
IRC00303 VS4-10 F10 Link Set
VPS0152 VFD Transmission Kit
VPS10200 VFD Twin Transmission Kit
|
|
|
F10 straight axles
