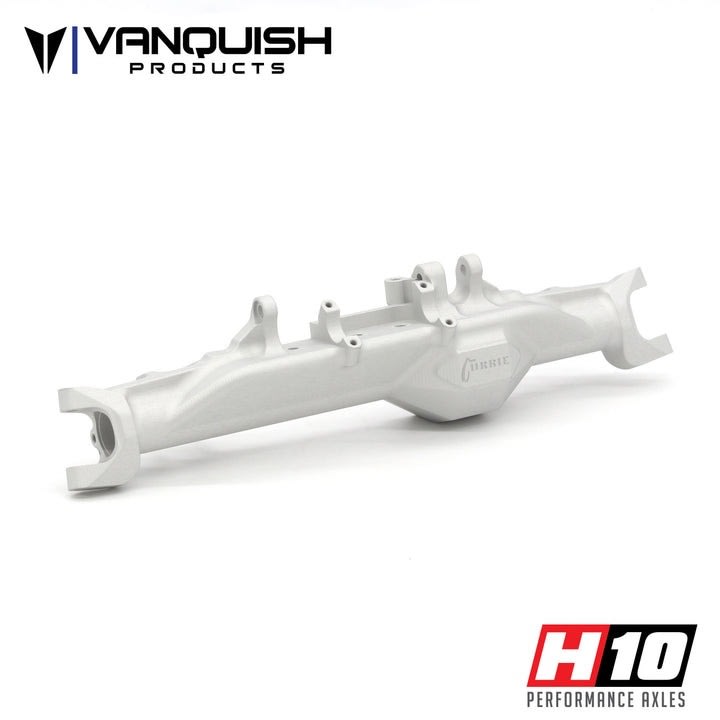

The Vanquish Products Currie H10 Aluminum Front Axle Housing is a direct replacement for the H10 Front axle included in the H10 Optic and VPS08800 F10 Front axle set. This axle housing is built to the same outside dimensions as the molded H10 axle housing to maximize clearance and utilize the original components* from your H10 axles. H10 axles feature an ultra rigid design that is made to run 4-link suspension with a behind the axle servo mount. Made in the USA with domestic produced aluminum and machined on Matsuura true 5-axis CNC machines.
Features:
Machined in the USA
Made from high quality domestic produced aluminum
Direct replacement for H10 Front Axle housing**
Built in steering bump stops at 47 degrees
Includes:
X1 H10 Front axle housing*
X2 M2.5x6mm bump stop screws
*Replaces plastic axle housing from VPS09010, VPS09027 and VPS08800. All bearings, hardware, 3rd member, bearing retainers, gears, knuckles, axle shafts, etc are reused.
**Please refer to VPS09010, VPS09027 or VPS08800 instruction manuals for replacement assembly instructions.
Note:
For use with IRC00509 S8E lower shock mount offset pivot ball at shock mount locations
Compatible with the following:
VPS09010 H10 Optic RTR
VPS09027 H10 Optic KIT
